Specifications
Frequency Range:200～6000 MHz
Insertion Loss ≤ 4.0 dB（Excluding theoretical loss 6.0 dB）
Input Port :VSWR ≤ 1.45（200M-225M）﹠1.30（225M-6000M）
Output Port VSWR :Typ.1.16 / Max.1.25
Isolation:Typ.28dB / Min.20dB
Amplitude Balance:±0.3dB
Phase Balance :±4°
Impedance:50 Ohms
Input/Output Connectors :SMA-Female
Power Rating Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

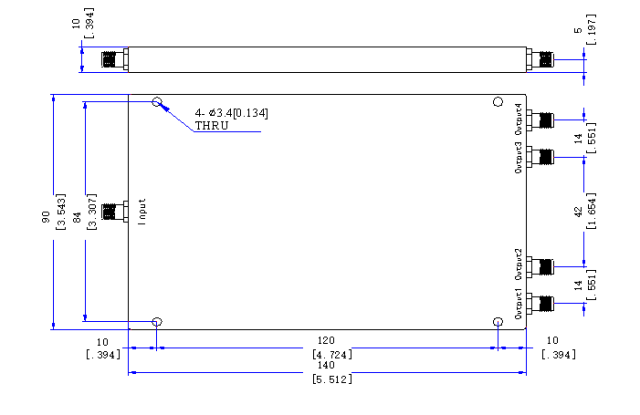

Outline Dimensions:140*90*10（mm）
Weight:280（g）
