Specifications
Frequency Range:200～800 MHz
Insertion Loss ≤ 0.9dB（Excluding theoretical loss:6.0dB）
Input Port VSWR :Typ.1.18 / Max.1.22
Output Port VSWR:Typ.1.12 / Max.1.20
Isolation:Typ.28dB / Min.20dB
Amplitude Balance:±0.3dB
Phase Balance :±3°
Impedance:50 Ohms
Input/Output Connectors:SMA- Female
Power Rating Splitter:30W; Combiner:2W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

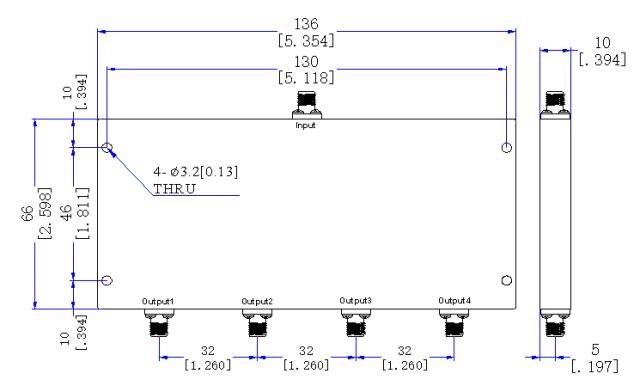

Outline Dimensions:66*136*10（mm）
Weight:180（g）
