20~3000 MHz SMA Female 4 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.2/3-2S
CONTACT US
  • 20~3000 MHz SMA Female 4 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:200～3000 MHz

Insertion Loss ≤ 1.4dB（Excluding theoretical loss:3.0 dB）

Input Port VSWR :Typ.1.16 / Max.1.25

Output Port VSWR :Typ.1.12 / Max.1.20

Isolation:Typ.28dB / Min.20dB

Amplitude Balance:±0.2dB

Phase Balance :±3°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating Splitter:30W; Combiner:2W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Black paint

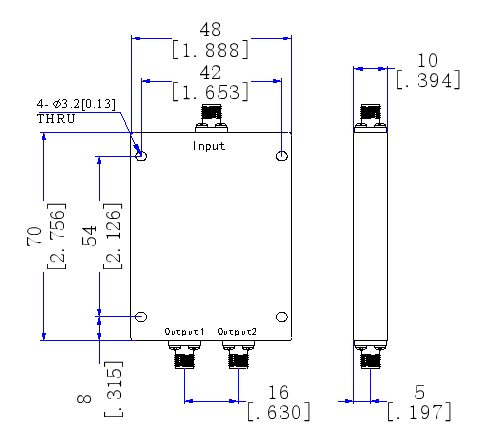

Outline Dimensions:70*48*10（mm）
