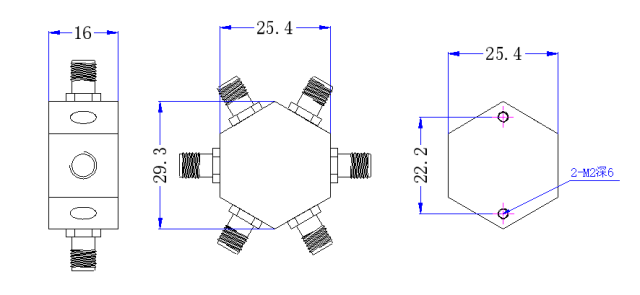

20~3000 MHz SMA Female 5 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-20/3000-5S
CONTACT US
  • 20~3000 MHz SMA Female 5 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range：20～3000 MHz

Insertion Loss ≤ 15.0 ± 1 dB

Input Port VSWR ≤1.25: 1

Output Port VSWR ≤1.25: 1

Isolation ≥ 14 dB

Amplitude Balance ：±0.6dB

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：2 W

Operation Temperature：-35℃ ~ +75℃

Surface Finishing：Black paint
