Home > All Collections > 20~8000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 20~8000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 20~8000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter

20~8000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-20/8000-8S
CONTACT US
  • 20~8000 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range：20～8000 MHz

Insertion Loss ≤ 30dB

Input Port VSWR：Typ.1.18 / Max.1.5

Output Port VSWR：Typ.1.18 / Max.1.5

Isolation：Min.6dB

Amplitude Balance：±0.8dB

Phase Balance ：±8°

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：2W

Operation Temperature：-35℃ ~ +75℃

Surface Finishing：Black paint

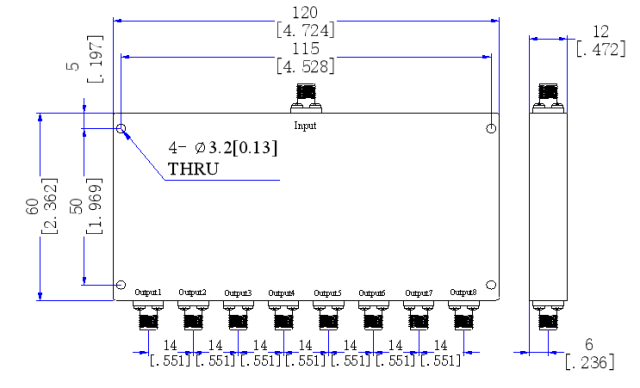

Outline Dimensions：120*60*12（mm）

Weight：220（g）
