Specifications
Frequency Range：22000～28000 MHz
Insertion Loss ≤ 0.6 dB（Excluding theoretical loss：3.0 dB）
Input Port VSWR ：Typ.1.26 / Max.1.5
Output Port VSWR：Typ.1.22 / Max.1.5
Isolation:Typ.22dB / Min.18dB
Amplitude Balance:± 0.4dB
Phase Balance :±4°
Impedance:50 Ohms
Input/Output Connectors:2.92mm-Female不锈钢
Power Rating Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

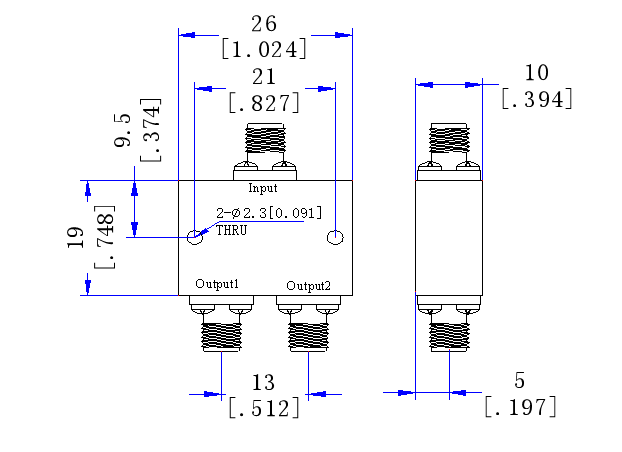

Outline Dimensions:19*26*10（mm）
Weight:21（g）
