Specifications
Frequency Range:220～2700 MHz
Insertion Loss ≤ 5.0dB（Excluding theoretical loss:15.0dB）
Input Port VSWR :Typ.1.19 / Max.1.50
Output Port VSWR :Typ.1.15 / Max.1.25
Isolation:Typ.26dB / Min.18dB
Amplitude Balance:±0.5dB
Phase Balance :±10°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:30W; Combiner:2W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing: Sandblasting natural color conductive oxide

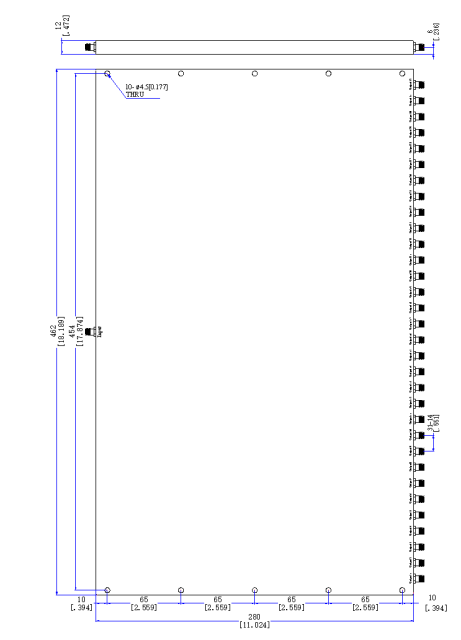

Outline Dimensions:280*462*12（mm）
Weight:3000（g）
