Specifications
Frequency Range:2～250 MHz
Insertion Loss ≤ 2.0 dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR ≤ 1. 35: 1
Output Port VSWR ≤ 1. 35: 1
Isolation:Typ.26dB / Min.20dB
Amplitude Balance:± 0.5dB
Phase Balance:±5°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:1W; Combiner:0.25W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing

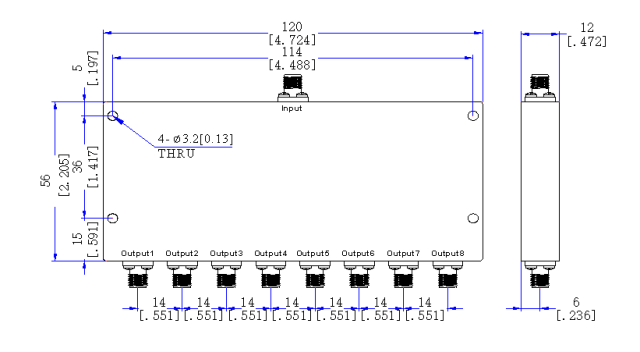

Outline Dimensions :56*120*12（mm）
Weight:200（g）
