Specifications
Frequency Range：23000～25000 MHz
Insertion Loss ≤ 0.6 dB（Excluding theoretical loss：3.0 dB）
Input Port VSWR：Typ.1.25 / Max.1.30
Output Port VSWR ：Typ.1.25 / Max.1.30
Isolation：Typ.24dB / Min.20dB
Amplitude Balance：±0.3dB
Phase Balance:±3°
Impedance:50 Ohms
Input/Output Connectors:2.92mm-Female
Power Rating Splitter:20W; Combiner:1W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Black paint

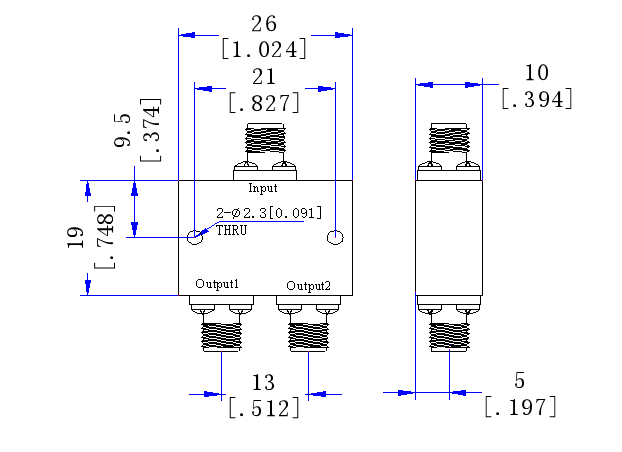

Outline Dimensions:26*19*10（mm）
Weight:21（g）
