The dual band Wi-Fi built-in antenna has become a key technology for improving wireless connection quality through its flexible frequency band support, efficient design, and wide applicability, suitable for various complex network application scenarios
Suitable for: Smart home, smart office, public services, gaming and streaming, smart IoT, various mobile terminal communications, etc

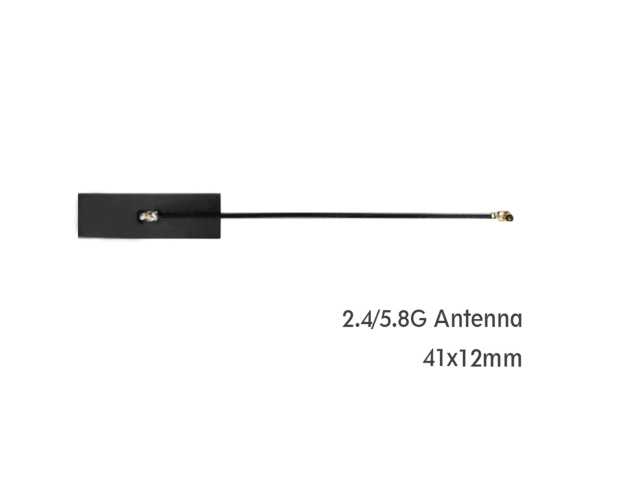

• Dual band Wi-Fi, Frequency Range
2400MHz-2500MHz/5150MHz-5850MHz
• Small size, easy to install
41.62×12.12mm, 3M double-sided adhesive installation
| Electrical/mechanical parameters: | |
| Frequency Range: | 2400MHz-2500MHz/5150MHz-5850MHz |
| Input Impendence: | 50Ω |

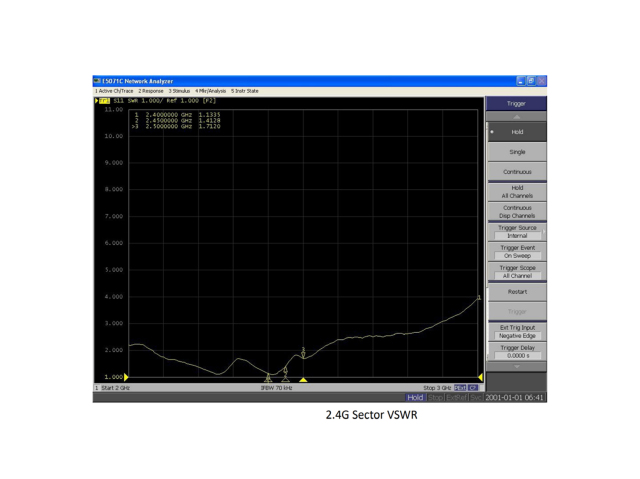

| VSWR: | ≤1.7 Max |
| Efficiency: | ≥65% |
| Gain: | 6.5dBi |
| Polarization: | linear polarization/vertical |
| Radiation pattern: | omnidirectional C |

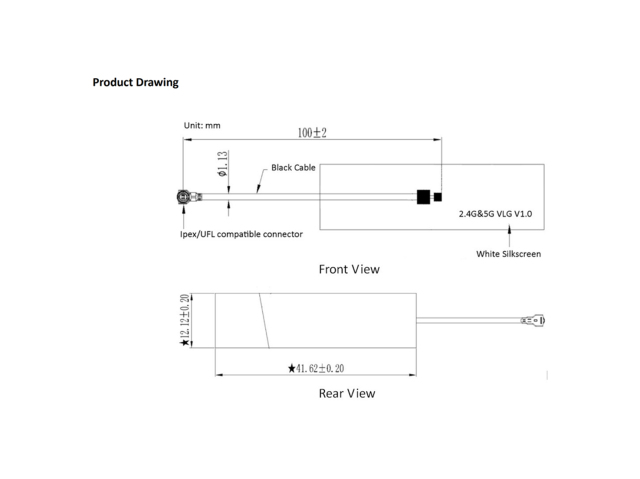

| Antenna Size: | 41.62×12.12mm |
| Cable Type & Length: | 100mm (φ1.13，Customizable) |
| Connect Type: | IPEX(Customizable) |
| Environmental protection: | ROHS |
