Home > All Collections > 24000~28000 MHz 2.92mm Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 24000~28000 MHz 2.92mm Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 24000~28000 MHz 2.92mm Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter

24000~28000 MHz 2.92mm Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-24/28-16K
CONTACT US
  • 24000~28000 MHz 2.92mm Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:24000～28000 MHz

Insertion Loss ≤ 2.5dB（Excluding theoretical loss :12.0 dB）

Input Port VSWR :Typ.1.28 / Max.1.60

Output Port VSWR:Typ.1.26 / Max.1.50

Isolation:Typ.22dB / Min.18dB

Amplitude Balance :± 0.8dB

Phase Balance :±8°

Impedance:50 Ohms

Input/Output Connectors :2.92mm-Female

Power Rating Splitter:10W; Combiner:1W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Black paint

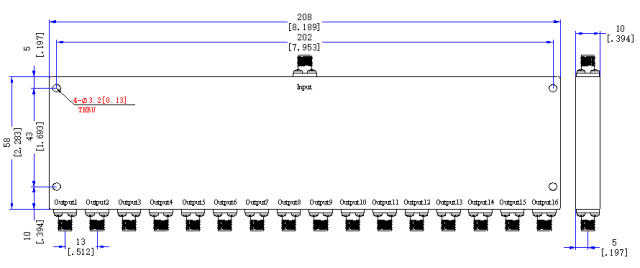

Outline Dimensions:58*208*10（mm）
