24000~28000 MHz 2.92mm Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-24/28-3K
CONTACT US
  • 24000~28000 MHz 2.92mm Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range：24000～28000 MHz

Insertion Loss ≤ 2.0 dB（Excluding theoretical loss ：4.8 dB）

Input Port VSWR ;Typ.1.28 / Max.1.5

Output Port VSWR :Typ.1.26 / Max.1.5

Isolation:Typ.22dB / Min.16dB

Amplitude Balance:±0.8dB

Phase Balance :±8°

Impedance:50 Ohms

Input/Output Connectors:2.92mm-Female不锈钢

Power Rating Splitter:10W; Combiner:1W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Black paint

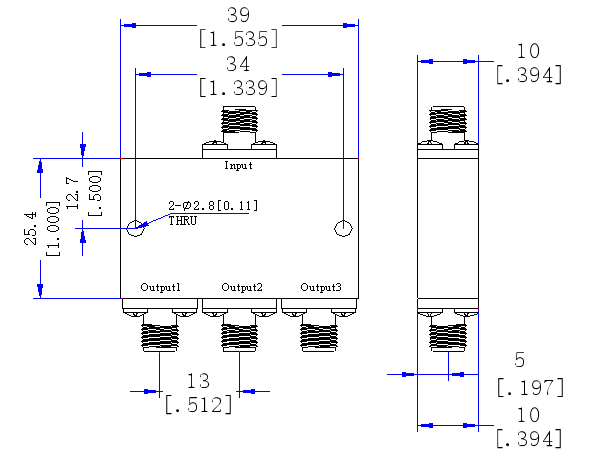

Outline Dimensions:25.4*39*10（mm）
