Technical Specifications
Frequency Range: 2400~2483MHz
Input Impedance:50 Ohm
V.S.W.R.:<=1.5
Gain:14 dBi
Polarization:Vertical, Linear
Max. Input Power:50 W

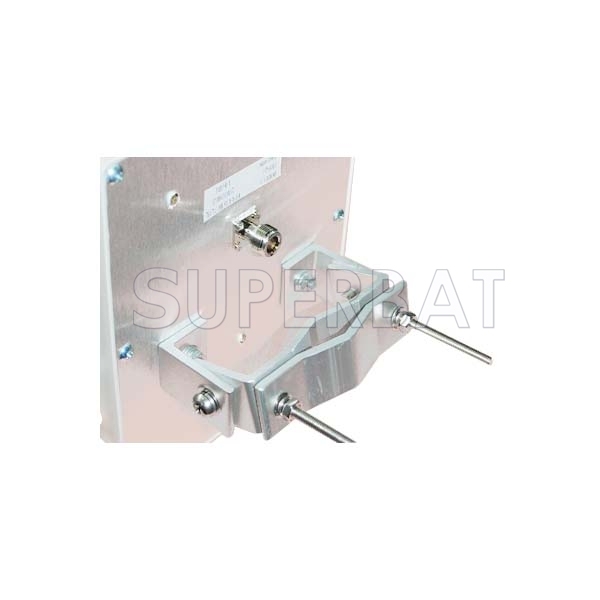

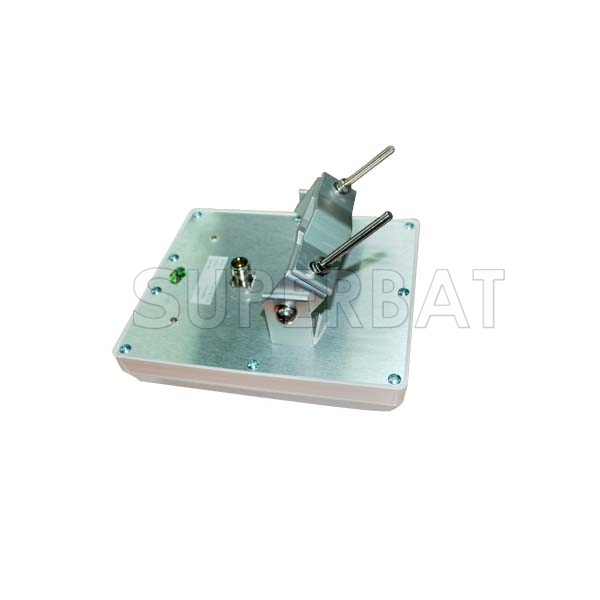

Connector location:Back
Connector:Standard N Female Connector Notes:If you choose the RP-SMA/RP-TNC ,the extra adapter or pigtail will be included in the package to fix your devices !If you need other kinds of connectors ,please contact with us at firstly!
Mechanical Specifications
Dimension:176mm X 208mm X20 mm
Weight:Approx 560g
Radiating Material:CuAg
Reflector Material:Electrolysis Board
Radom material:ABS
Horizontal Beamwidth:13 degrees
Vertical Beamwidth:17.5 degrees
