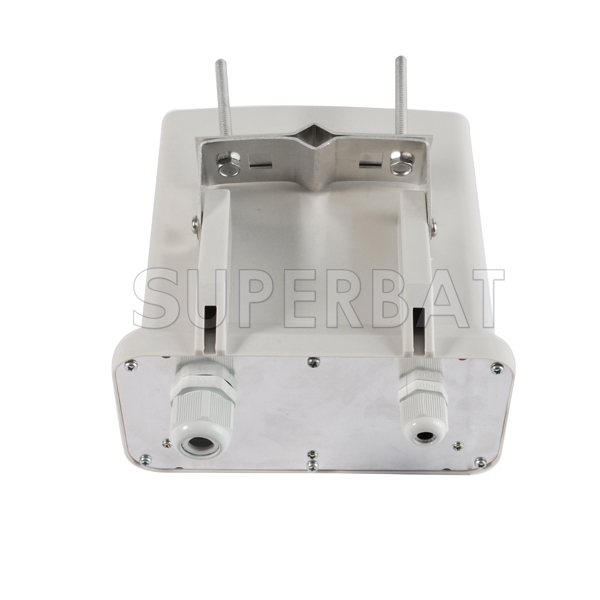

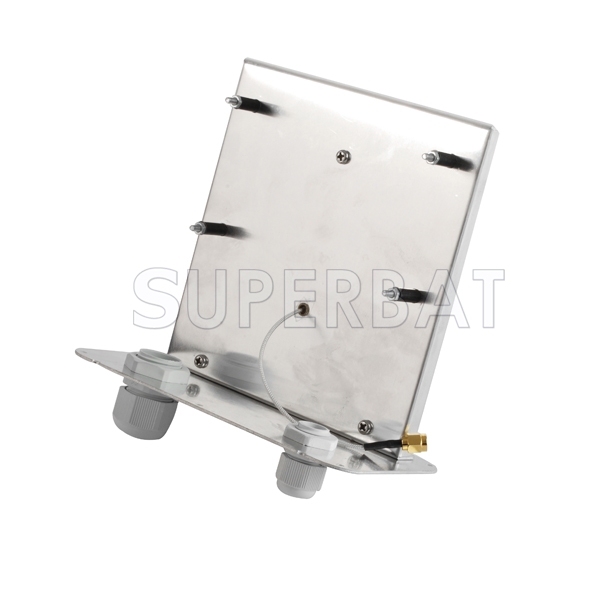

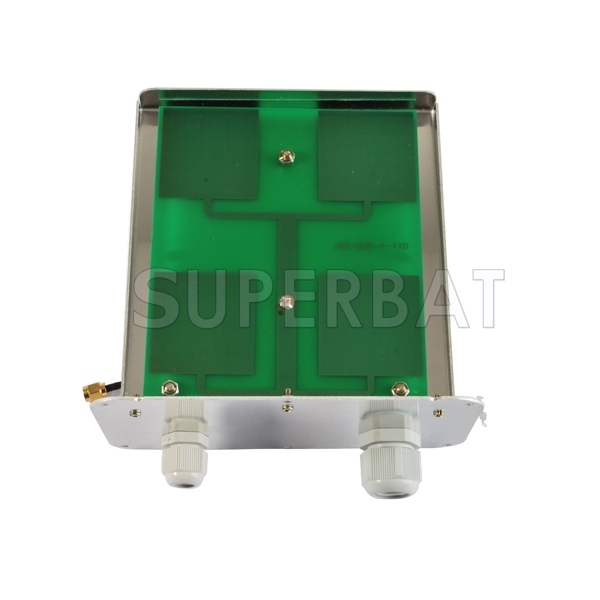

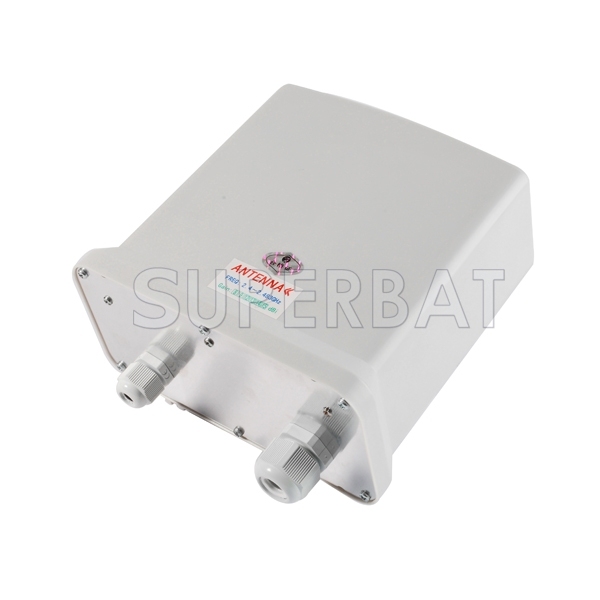

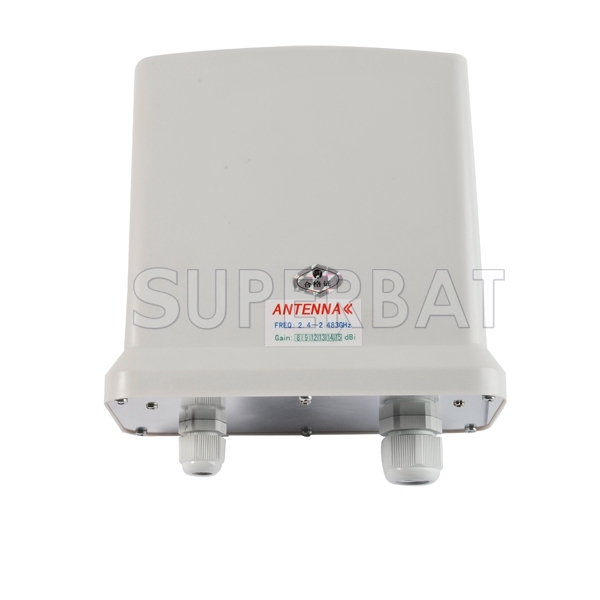

2.4GHz 14dBi WiFi Directional Panel Antenna with RP-SMA for IEEE

No.WAP-1553-S02SP-140-15
Type：WIFI AntennaCenter Frequency：2.4GHzConnector Series：SMAConnector Gender：Plug StraightImpedance：50Nominal Gain：14dbiV.S.W.R：≤1.5Antenna Size：185mm*165MM*112MM
CONTACT US
  • 2.4GHz 14dBi WiFi Directional Panel Antenna with RP-SMA for IEEE
  • 2.4GHz 14dBi WiFi Directional Panel Antenna with RP-SMA for IEEE
  • 2.4GHz 14dBi WiFi Directional Panel Antenna with RP-SMA for IEEE
  • 2.4GHz 14dBi WiFi Directional Panel Antenna with RP-SMA for IEEE
  • 2.4GHz 14dBi WiFi Directional Panel Antenna with RP-SMA for IEEE
Description

Description:
Frequency Range-MHZ: 2400-2483MHZ
Bandwidth-MHZ:50MHZ
Gain-dBi:14
Horizontal Beamwidt-°:30
Vertical Beamwidth-°:24
F/Bration-db>=30
V.S.W.R<=1.5
Input Impedance-Ω:50
Polarization Type:Vertical or Horizontal
Max.Power-W:100
Connector:RP-SMA Male
Antennas Dimension-mm: 185mmX165MMX112MM
Weight:572g
