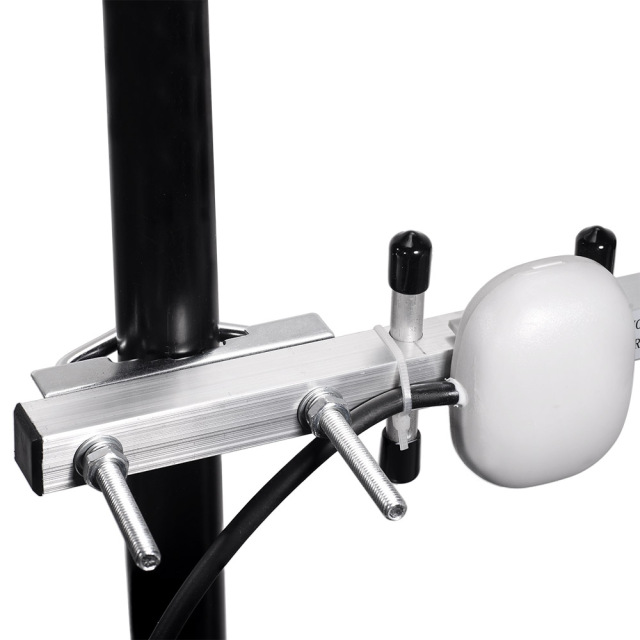

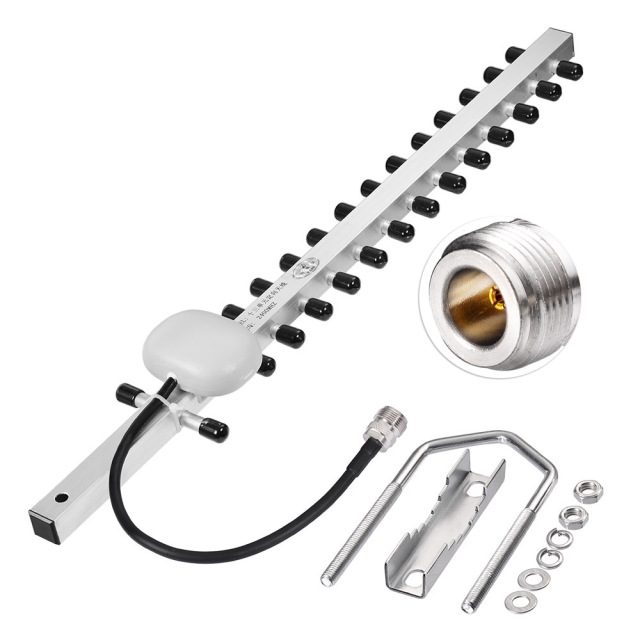

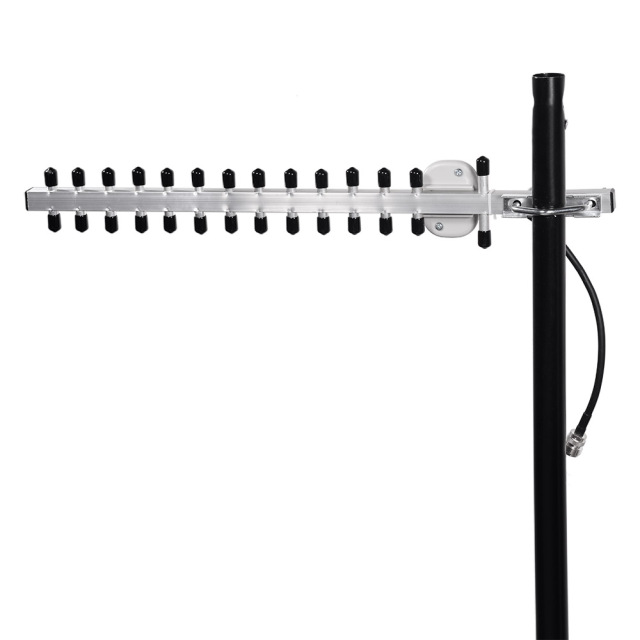

2.4GHz 16dBi Wifi Yagi Directional Antenna For 802.11b/g N Female

No.WAY-876-N01SJ-160-20
Type：WIFI AntennaCenter Frequency：2.4GHzConnector Series：NConnector Polarity：StandardConnector Gender：Jack StraightImpedance：50Nominal Gain：16dbiV.S.W.R：≤1.5Cable Length：20cmAntenna Size：46cm
CONTACT US
  • 2.4GHz 16dBi Wifi Yagi Directional Antenna For 802.11b/g N Female
  • 2.4GHz 16dBi Wifi Yagi Directional Antenna For 802.11b/g N Female
  • 2.4GHz 16dBi Wifi Yagi Directional Antenna For 802.11b/g N Female
  • 2.4GHz 16dBi Wifi Yagi Directional Antenna For 802.11b/g N Female
  • 2.4GHz 16dBi Wifi Yagi Directional Antenna For 802.11b/g N Female
Description

Frequency Range-MHz: 2400~2483MHz
VSWR : ≤1.5
Input Impedance-Ω: 50
Gain-dBi : 16dbi
Polarization : Vertical
F/B ratio-dB
Horizontal Beamwidth -°: 36
Vertical Beamwidth -°: 23
Maximum Power -W : 50
Bandwidth-MHz : 100
Connector: N-Type female connector
Mechanical Specifications
Dimensions-mm: 46cm
Weight-kg: 0.4
Length of the extended cable-cm : 20
Mounting Mast Diameter-mm: Φ50-100
