Technical Specifications
Frequency Range: 2400~2483MHz
Input Impedance:50 Ohm
V.S.W.R.:<1.5
Gain:18 dBi
Polarization:Vertical, Linear
Max. Input Power:50 W

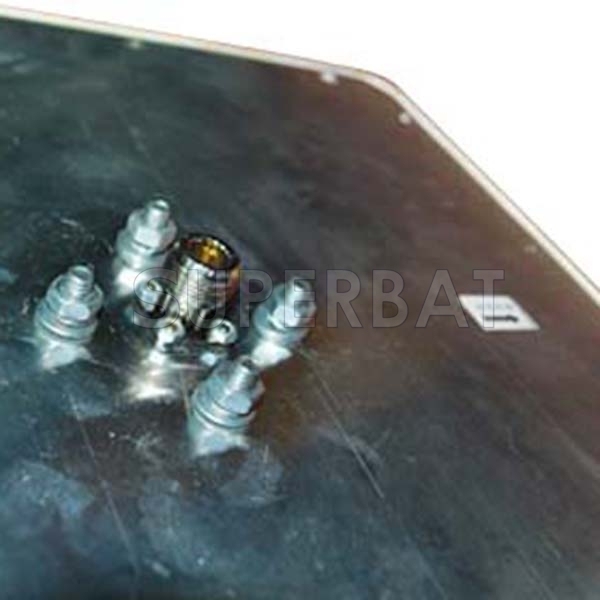

Connector location:Back

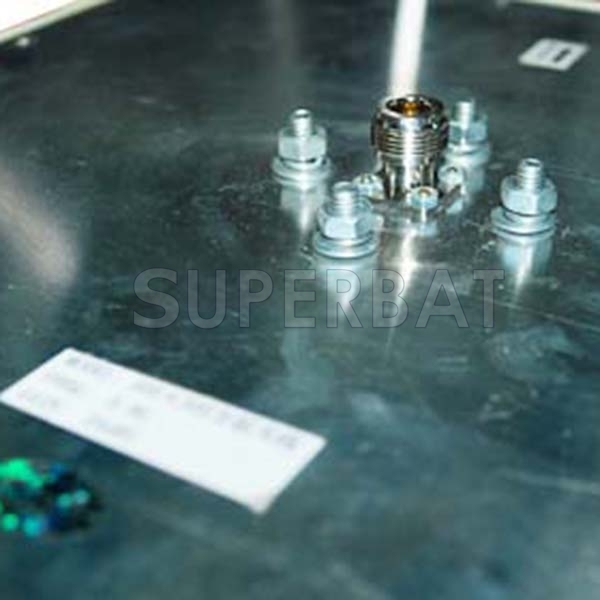

Antenna Connector:Standard N Female Notes:If you choose the RP-SMA/RP-TNC ,the extra adapter or pigtail will be included in the package to fix your devices !If you need other kinds of connectors ,please contact with us at firstly!
Mechanical Specifications
Dimension:305mm x 305mm x 20mm (12†x 12â€x 0.6â€)
Weight:Approx. 1.0kg
Radiating Material:CuAg
Reflector Material:Electrolysis Board
Radom material:ABS

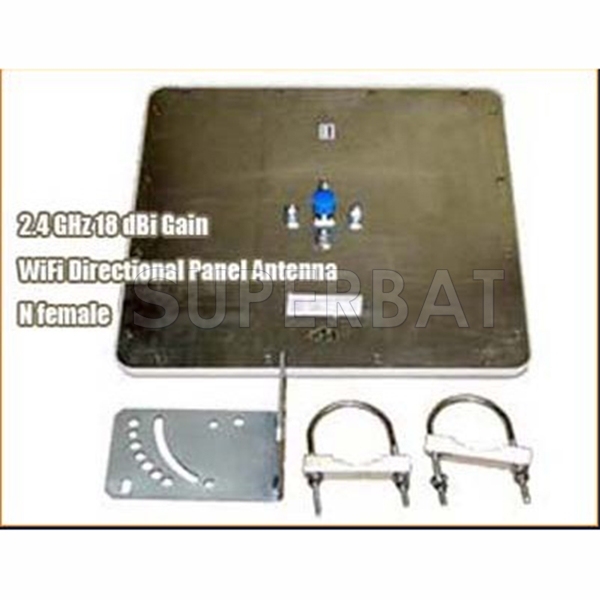

Mounting bracket:120mm x 80mm x 75mm
Horizontal Beamwidth:13 degrees
Vertical Beamwidth:17.5 degrees
