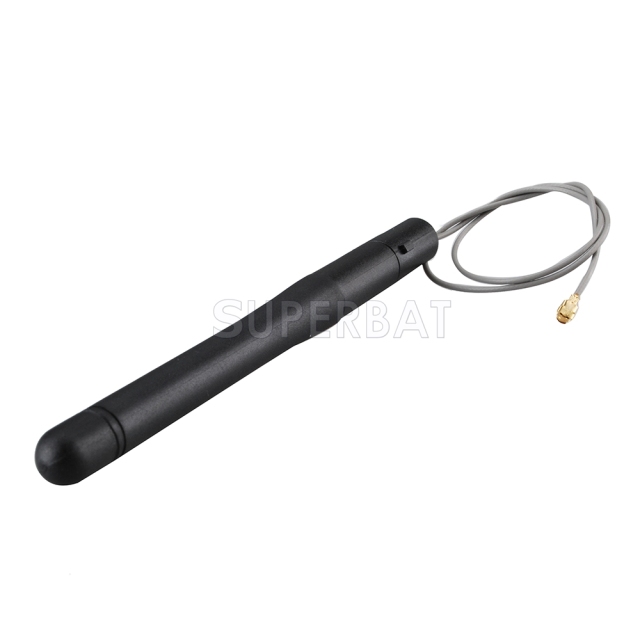

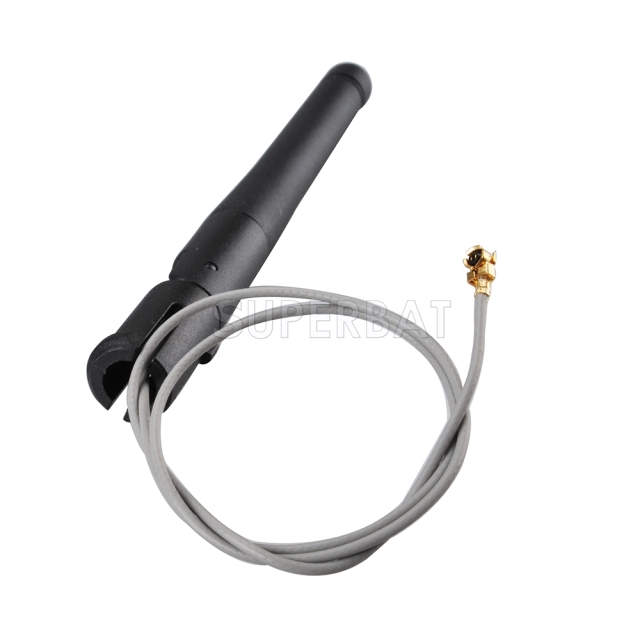

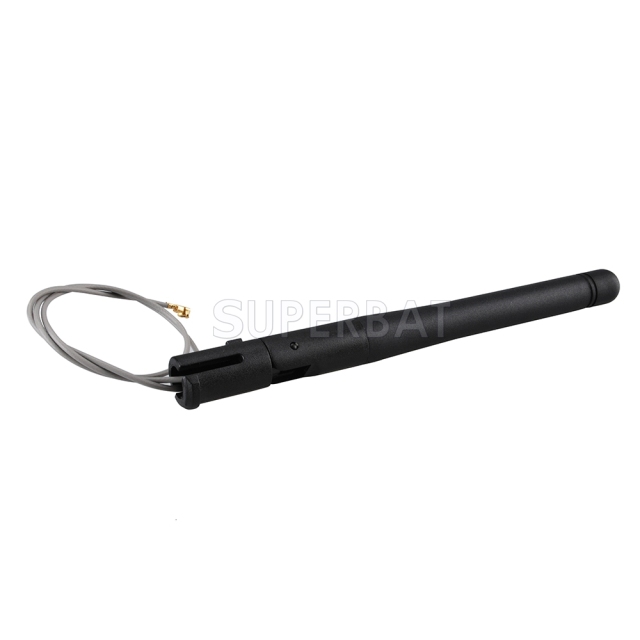

2.4GHz 3dBi Omni WIFI Antenna with extended cable IPX Wireless module MINI-PCI

No.WA3-889-U04RJ-030-27
Type：WIFI AntennaCenter Frequency：2.4GHzConnector Series：IPXConnector Polarity：StandardConnector Gender：Jack Right AngleImpedance：50Nominal Gain：3dbiV.S.W.R：≤2Cable Length：27CMAntenna Size：10.5cm
CONTACT US
  • 2.4GHz 3dBi Omni WIFI Antenna with extended cable IPX Wireless module MINI-PCI
  • 2.4GHz 3dBi Omni WIFI Antenna with extended cable IPX Wireless module MINI-PCI
  • 2.4GHz 3dBi Omni WIFI Antenna with extended cable IPX Wireless module MINI-PCI
Description

Frequency (MHz)：2.4GHz
VSWR：≤2
Gain-dBi：3
Polarization：Vertical
Directionality: omni-directional
Diameter(mm)：5.6mm
Antenna Length(mm)：105mm
Cable Length(mm):27CM
Connector Type：IPX/u.fl Connector
Operational Temperature: -20C to +60C
Housing ：Black
Application：Wireless module and MINI-PCI Card
( IEEE 802.11b and 802.11g Wireless LANS )
Antenna Weight：5g
