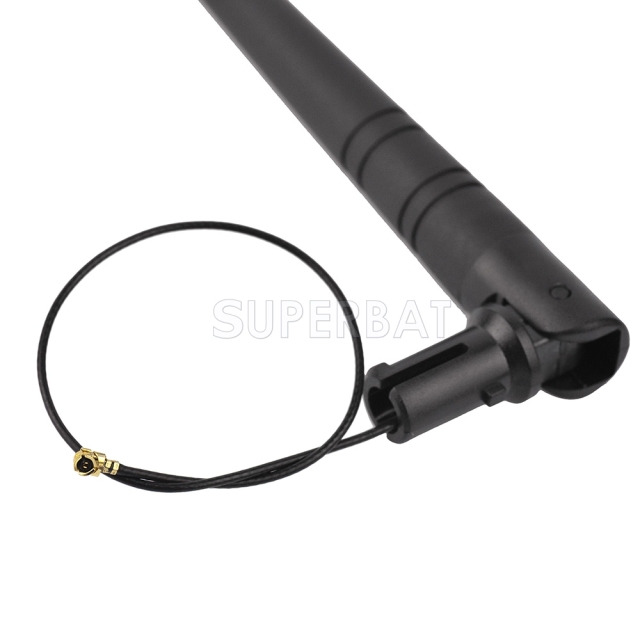

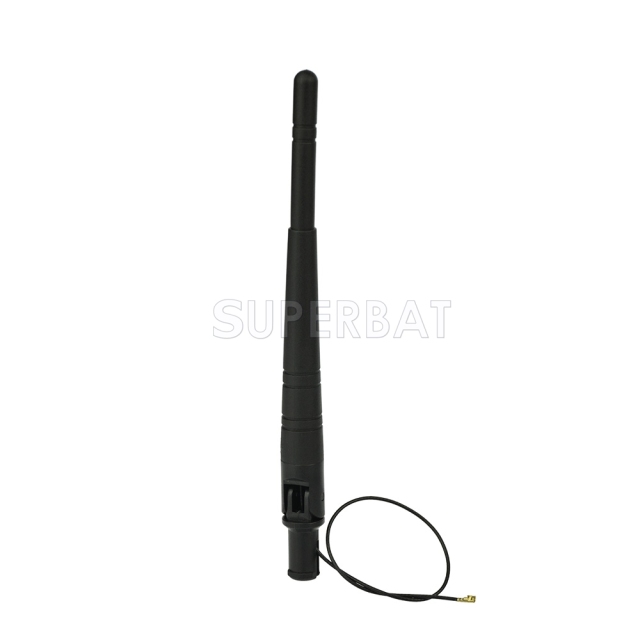

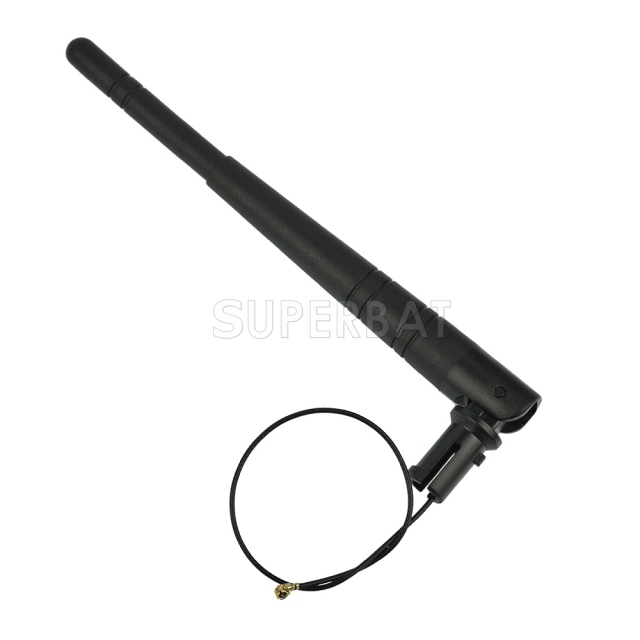

2.4GHz 5dBi Omni WIFI Antenna aerial with extended cable 15cm IPX/u.fl end

No.WA3-2373-U04RJ-050-15
Type：WIFI AntennaCenter Frequency：2.4GHzConnector Series：IPXConnector Polarity：StandardConnector Gender：Jack Right AngleImpedance：50Nominal Gain：5dbiV.S.W.R：≤1.5Cable Length：15CMAntenna Size：13cm
CONTACT US
  • 2.4GHz 5dBi Omni WIFI Antenna aerial with extended cable 15cm IPX/u.fl end
  • 2.4GHz 5dBi Omni WIFI Antenna aerial with extended cable 15cm IPX/u.fl end
  • 2.4GHz 5dBi Omni WIFI Antenna aerial with extended cable 15cm IPX/u.fl end
Description

Frequency（MHz ）：2400-2500MHZ
VSWR：≤1.5
Gain-dBi：5dbi
Polarization：Vertical
Directionality: omni-directional
Antenna Length(mm)：130mm
Cable Length(mm):15CM
Connector Type：IPX/u.fl Connector
Operational Temperature: -40C to +60C
Storage temperature: -20 to 40 ℃
Bandwidth: 100MHz
Power Capacity:50W
Housing ：Black
Antenna Weight：10g
