Description:

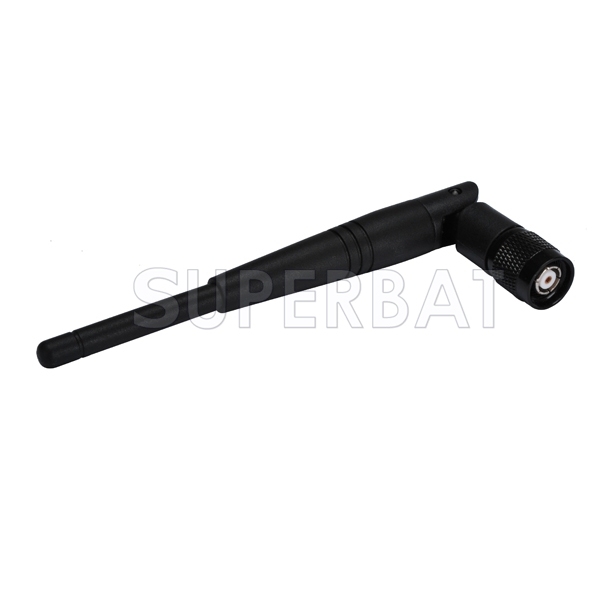

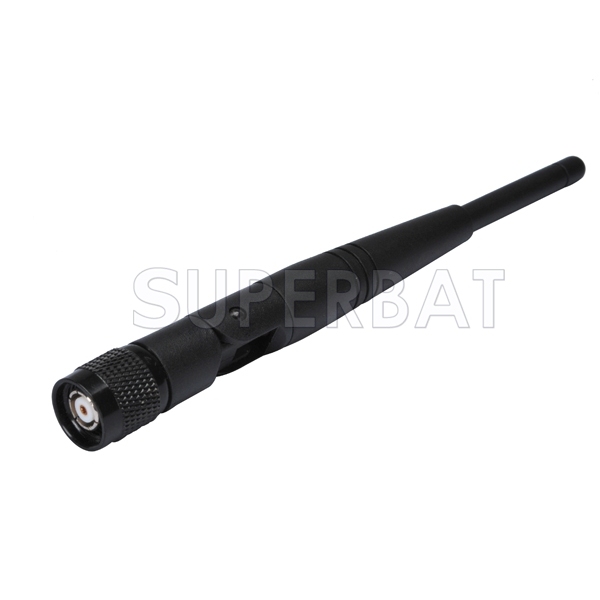

This compact 2.4GHz omni directional Wi-Fi antenna provides broad coverage and 5 dBi gain for all IEEE 802.11 b/g devices with a RP-TNC connector.
It is ideally suited for IEEE 802.11b and 802.11g wireless LANs,

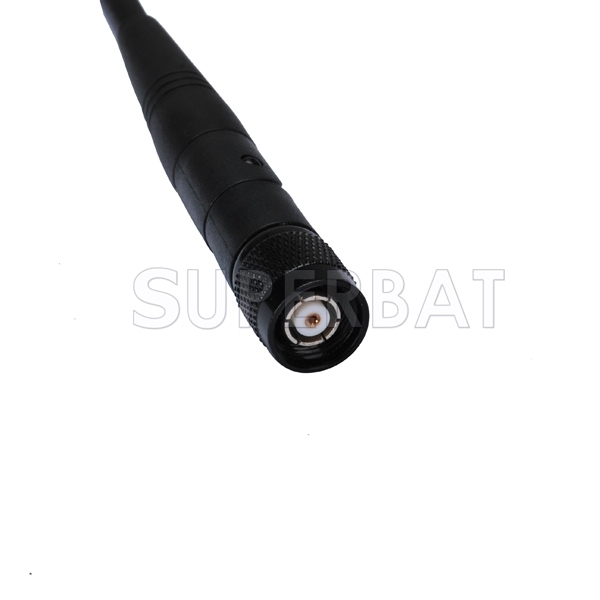

This flexible antenna features a tilt-and-swivel reverse-polarity TNC connector, allowing them to be used vertically, at a right angle, or any angle in-between.
The antenna is compatible for example with the following WLAN Access Points, Routers or s (which mostly shipped by default with a standard 2 dBi-gained antennas) And, of course, it is also suitable for many other 802.11b/g devices, that are equipped with reverse-polarity TNC connectors.
Specification:
Frequency（MHz ）：2.4GHz
VSWR：≤1.5
Gain-dBi：5dbi
Polarization：Vertical
Directionality: omni-directional
Diameter(mm)：13.2mm
Antenna Length(mm)：145mm
Connector Type：RP-TNC male Connector
Housing ：Black
Application：Wireless Router and WLAN PCI Card
( IEEE 802.11b and 802.11g Wireless LANS )
Antenna Weight：25g
