Electrical Specifications | |
Frequency Range | 2400～2500 MHz |
Bandwidth | 100 MHz |
Gain | 8 dBi |
Half-power beam width | H:360° V:14° |
VSWR | ≤1.5 |
Input Impedance | 50 Ω |
Polarization | Vertical |
Maximum input power | 100 W |
Lightning protection | DC Ground |

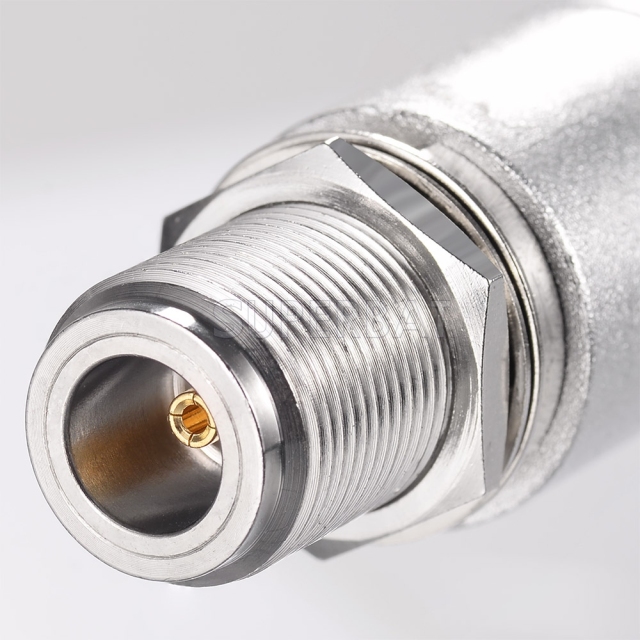

Interface connector type | N Female |
Mechanical Specifications | |
Dimensions | Φ20*680MM |
Antenna weight | 0.39KG |
Operating temperature | -40～60 °C |
Rated Wind Velocity | 60M/S |
Radome color | Gray |

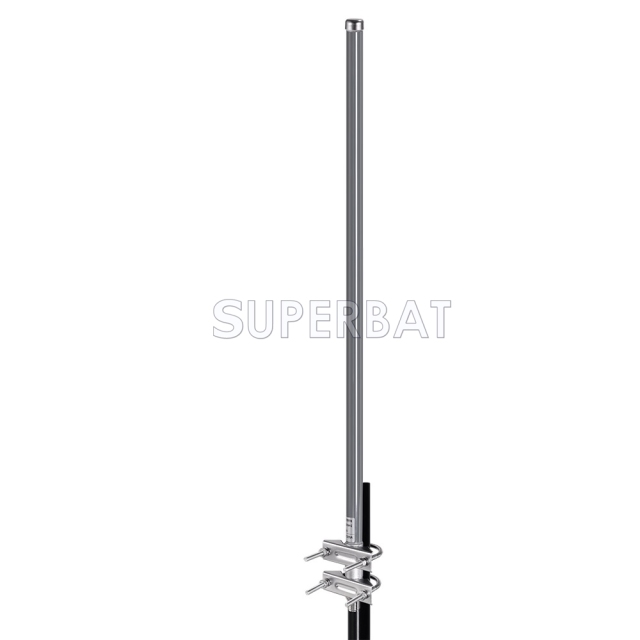

Mounting method | Pole-holding |
Mounting hardware | ￠35-￠50MM |
Application
2.4GHz WLAN system
WiFi system
Point-to-multipoint system
