Specifications
Frequency Range:25000～50000 MHz
Insertion Loss ≤ 1.5 dB（Excluding theoretical loss:6.0 dB）
Input Port VSWR :Typ.1.38 / Max.1.8
Output Port VSWR :Typ.1.26 / Max.1.6
Isolation:Typ.22dB / Min.15dB
Amplitude Balance :±0.4dB
Phase Balance :±8°
Impedance:50 Ohms
Input/Output Connectors :2.4mm-Female（Passivated Stainless Steel）
Power Rating Splitter:10W; Combiner:0.5W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

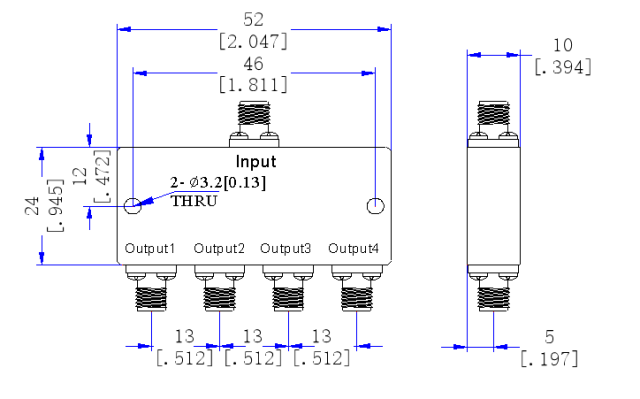

Outline Dimensions:24*52*10（mm）
