Specifications
Frequency Range:2500～2700 MHz
Insertion Loss ≤ 1.8dB（Excluding theoretical loss:15.0 dB）
Input Port VSWR:Typ.1.18 / Max.1.35
Output Port VSWR:Typ.1.12 / Max.1.25
Isolation ≥20dB
Amplitude Balance:±0.4dB
Phase Balance:±6°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:30W; Combiner:2W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

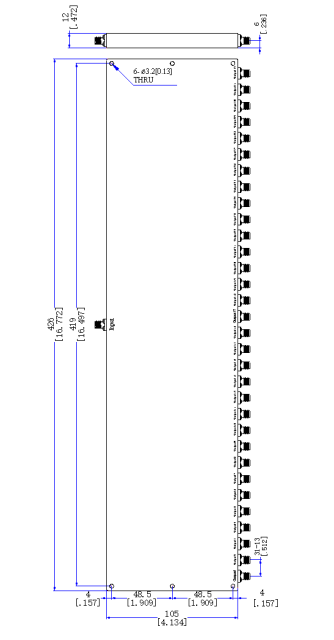

Outline Dimensions:105*426*12（mm）
