Specifications
Frequency Range:2500～4000 MHz
Insertion Loss ≤ 2.0dB（Excluding theoretical loss:15.0dB）
Input Port VSWR:Typ.1.18 / Max.1.35
Output Port VSWR:Typ.1.12 / Max.1.25
Isolation:Typ.26dB / Min.20dB
Amplitude Balance:±0.4dB
Phase Balance:±6°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female；
Power Rating:Splitter:10W; Combiner:0.5W
Operation Temperature:-40℃ ~ +75℃
Surface Finishing

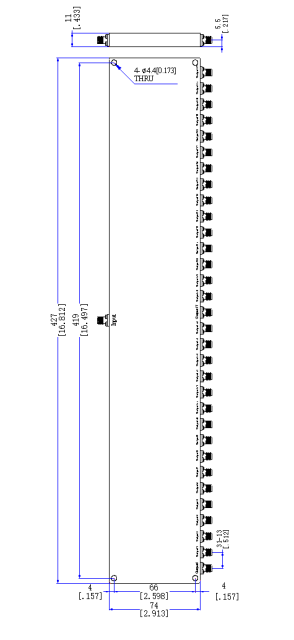

Outline Dimensions :74*427*11（mm）
Weight:1300（g）
