Frequency: GPS/BT(Wi-Fi)/4G
VSWR:＜2.0/＜2.5/ ＜3.0
Gain: ＜0.3dBi /＜-2.7dBi / ＜ 4.4dBi
Max. Efficiency: ＜42%/＜20%/＜41%
Application: Charging Pile, Vending Machine, ATM machine, Self-service all-in-one machine, smart parcel locker, various smart cabinet solution, and etc.

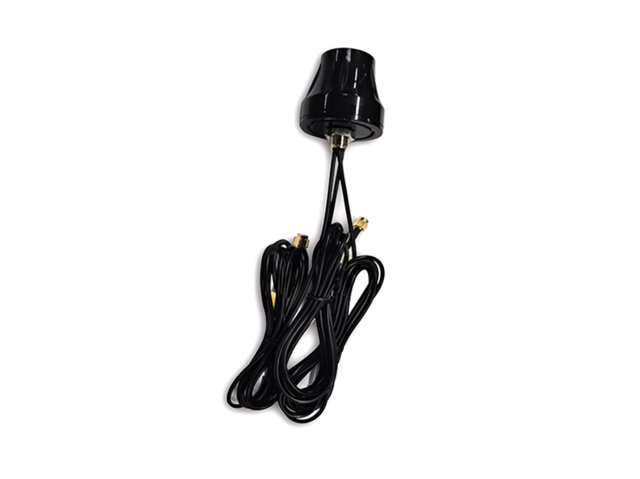

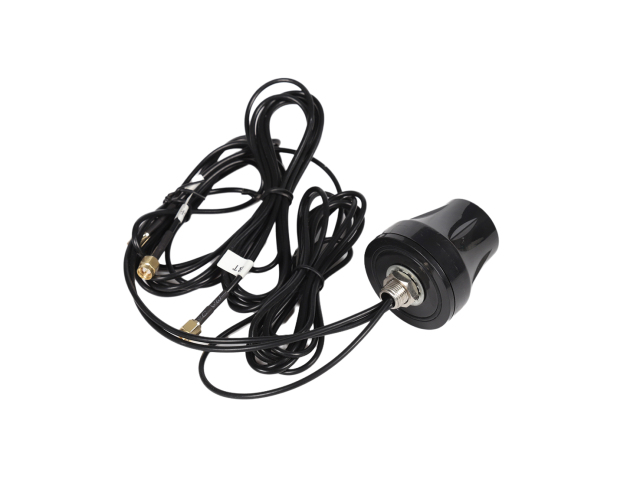

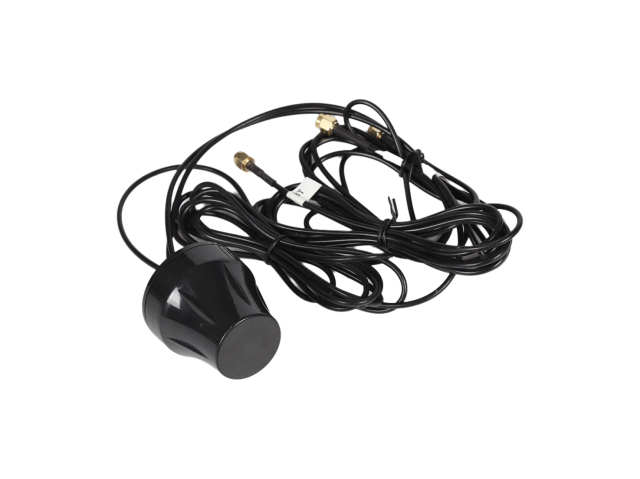

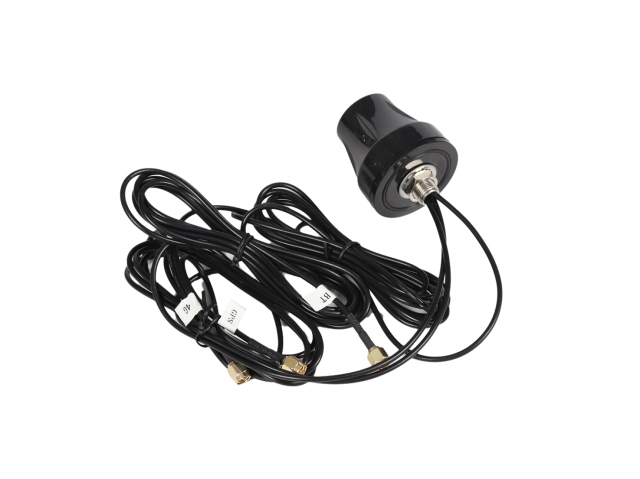

This multi-antenna combines 3 different powerful antennas in a mushrooms shape casing. One 3G / 4G antenna for data connection, covering the frequency bands 820-960MHz and 1710-2690MHz. Another one antenna is 2.4G Bluetooth/Wi-Fi. The third antenna is a passive GPS antenna which can meet the basic positioning accuracy requirements.
• Compact Size
This antenna has compact size, which can well save the installation space, and make the installation more easily.
• Easy Installation
This screw mount omnidirectional antenna is easy to install.
• High integration
This 3-in-1 combination antenna is specially desing for application that require 4G， blue-tooth/wifi connection & GPS positioning function in one devices.
• Wide applicability
For now, our clients have used this antenna on Vending Machines, Sharing charging pile, vehicles. It can be widely be used on different smart city applications.
| 4G Antenna | Wifi/BT Antenna | GPS Antenna | |
| (1) Frequency range: |
820~960, 1710~2690 Mhz BAND1/3/5/8/38/39/40/41 |
2400-2500 Mhz | 1559-1585 Mhz |
| (2) V.S.W.R: | <3.0 | <2.5 | <2.0 |
| (3) Impedance: | 50Ω | 50Ω | 50Ω |
| (4) Gain: | ＜ 4.4dBi | ＜-2.7dBi | ＜0.3dBi |
| (5) Polarization: | Linear | Linear | Vertical |
| (6) Efficiency (Max) | 41% | 20% | 42% |
| Mechanical Specifications | |
| (1) Size(mm) | ∅46.2*17.7 |
| (2) Connector Type | SMA (Customize) |
| (3) Radome Color | Black |
| (4) Mounting Type | Stud installation |
| Environmental Requirements | |
| (1) Operating temperature | -30℃ ~ +65℃ |
| (2) Storage Temperature | -30℃~75℃ |
