Home > All Collections > Others > Power Splitter > 3.0-18 GHz Power Divider 50 Ohm Wide-Band Signal Splitter
  • 3.0-18 GHz Power Divider 50 Ohm Wide-Band Signal Splitter
  • 3.0-18 GHz Power Divider 50 Ohm Wide-Band Signal Splitter

3.0-18 GHz Power Divider 50 Ohm Wide-Band Signal Splitter

No.MNK-A2833-HS
CONTACT US
  • 3.0-18 GHz Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Cut Off Frequency：3.0GHz

Pass Band Frequency：3.0～18GHz

Pass Band Insertion Loss≤1.6dB @ 3.0～3.2GHz

≤1.0dB @ 3.2～18GHz

Pass Band VSWR ≤1.5:1

Stop Band Attenuation≥60dB @ DC～2.6GHz

Impedance：50 ohms

Power≤15W

Connectors：SMA-Female

Surface Finish：Guided Oxygen or Black Paint

Temperature Range：-55℃～+85℃

Net weight：0.04 KG

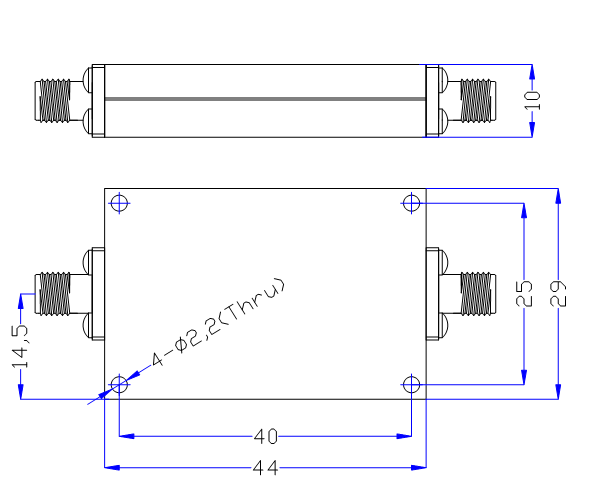

Configuration：As Below (Size Unit: mm)
