Home > All Collections > 300~700 MHz N Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 300~700 MHz N Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 300~700 MHz N Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter

300~700 MHz N Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.3/0.7-3N
CONTACT US
  • 300~700 MHz N Female 3 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:300～700 MHz

Insertion Loss ≤ 1.0 dB（Excluding theoretical loss:4.8 dB）

Input Port VSWR :Typ.1.15 / Max.1.30

Output Port VSWR :Typ.1.10 / Max.1.20

Isolation:Typ. 25dB / Min. 20dB

Amplitude Balance:±0.5dB

Phase Balance :±5°

Impedance:50 Ohms

Input/Output Connectors:N-Female

Power Rating Splitter:30W; Combiner:2W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing:Sandblasting natural color conductive oxidation

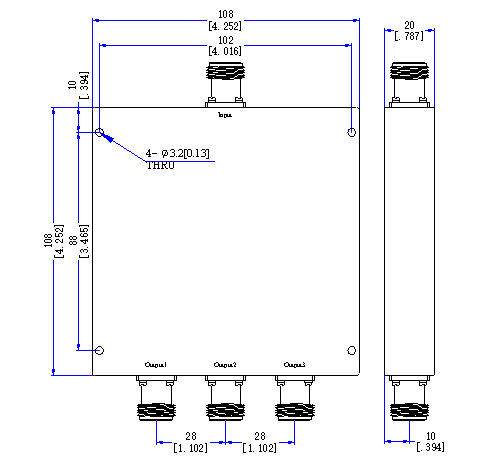

Outline Dimensions:108*108*20（mm）

Weight:580（g）
