Specifications
Frequency Range:300～700 MHz
Insertion Loss ≤ 0.6 dB（Excluding theoretical loss:6.0 dB）
Input Port VSWR :Typ.1.15 / Max.1.20
Output Port VSWR :Typ.1.10 / Max.1.20
Isolation:Typ. 25dB / Min. 20dB
Amplitude Balance:±0.3dB
Phase Balance :±3°
Impedance:50 Ohms
Input/Output Connectors:N-Female
Power Rating Splitter:30W; Combiner:2W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxidation

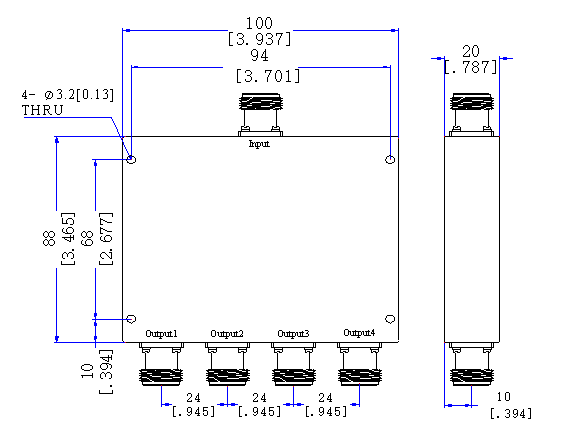

Outline Dimensions:88*100*20（mm）
Weight:380（g）
