300~700 MHz SMA Female 6 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.3/0.7-6S
CONTACT US
  • 300~700 MHz SMA Female 6 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:300～700 MHz

Insertion Loss ≤ 1.0dB（Excluding theoretical loss:7.8dB）

Input Port VSWR :Typ.1.18 / Max.1.25

Output Port VSWR :Typ.1.12 / Max.1.20

Isolation:Typ.28dB / Min.20dB

Amplitude Balance:±0.5dB

Phase Balance :±5°

Impedance:50 Ohms

Input/Output Connectors :SMA- Female

Power Rating Splitter:10W; Combiner:1W

Operation Temperature:-35℃ ~ +70℃

Surface Finishing:Sandblasting natural color conductive oxide

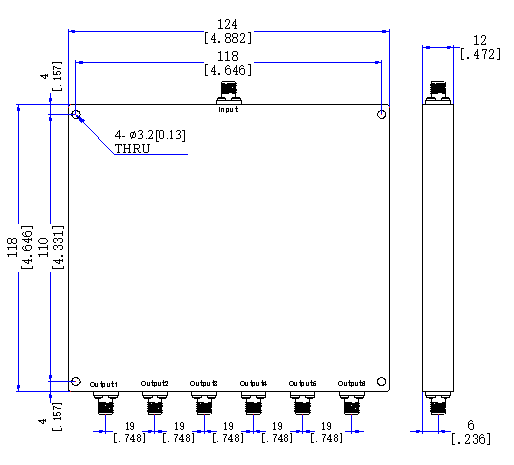

Outline Dimensions:118*124*12（mm）
