Specifications
Frequency Range:30～65 MHz
Insertion Loss ≤ 1.0dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR ≤ 1. 35: 1
Output Port VSWR ≤ 1. 20: 1
Isolation:Typ.30dB / Min.28dB
Amplitude Balance:± 0.3dB
Phase Balance:±3°
Impedance:50 Ohms
Input/Output Connectors :SMA-Female
Power Rating:Splitter:1W; Combiner:0.5W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing

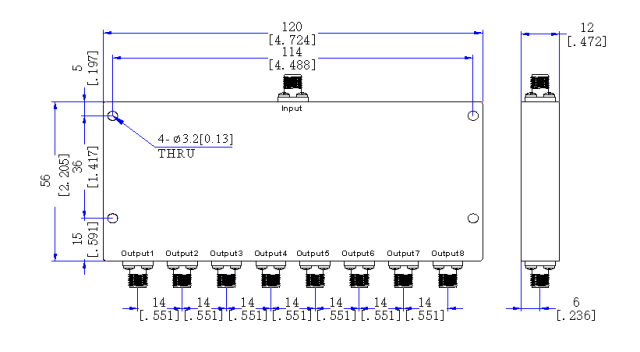

Outline Dimensions:56*120*12（mm）
Weight:200（g）
