Home > All Collections > Others > Power Splitter > 3~1500MHz SMA Female 24 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 3~1500MHz SMA Female 24 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 3~1500MHz SMA Female 24 Way Power Divider 50 Ohm Wide-Band Signal Splitter

3~1500MHz SMA Female 24 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.003/1.5-24S

CONTACT US
  • 3~1500MHz SMA Female 24 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:3～1500 MHz

Insertion Loss ≤ 29.6dB

Input Port VSWR:Typ.1.18 / Max.1.20

Output Port VSWR:Typ.1.16 / Max.1.20

Isolation:Min.25dB

Amplitude Balance:±0.6dB

Phase Balance:±6°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating:2W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing

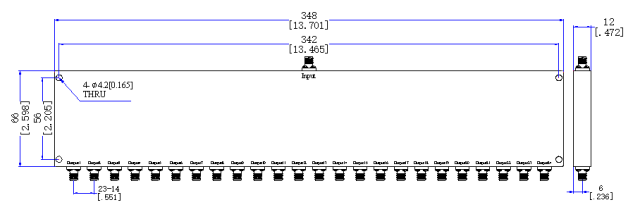

Outline Dimensions:66*348*12（mm）

Weight:850（g）
