3~6000MHz SMA Female 24 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.003/6-24S

CONTACT US
  • 3~6000MHz SMA Female 24 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:3～6000 MHz

Insertion Loss ≤ 35dB

Input Port VSWR:Typ.1.18 / Max.1.25

Output Port VSWR:Typ.1.16 / Max.1.25

Isolation:Min.25dB

Amplitude Balance:±0.8dB

Phase Balance:±8°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating:2W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing

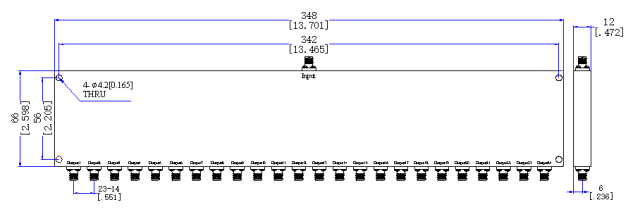

Outline Dimensions :66*348*12（mm）

Weight:850（g）
