Home > All Collections > 3dbi Omni-directional GSM/UMTS/HSPA Antenna 890-960MHz/1710-1880MHZ MMCX male
  • 3dbi Omni-directional GSM/UMTS/HSPA Antenna 890-960MHz/1710-1880MHZ MMCX male
  • 3dbi Omni-directional GSM/UMTS/HSPA Antenna 890-960MHz/1710-1880MHZ MMCX male
  • 3dbi Omni-directional GSM/UMTS/HSPA Antenna 890-960MHz/1710-1880MHZ MMCX male
  • 3dbi Omni-directional GSM/UMTS/HSPA Antenna 890-960MHz/1710-1880MHZ MMCX male
  • 3dbi Omni-directional GSM/UMTS/HSPA Antenna 890-960MHz/1710-1880MHZ MMCX male
  • 3dbi Omni-directional GSM/UMTS/HSPA Antenna 890-960MHz/1710-1880MHZ MMCX male

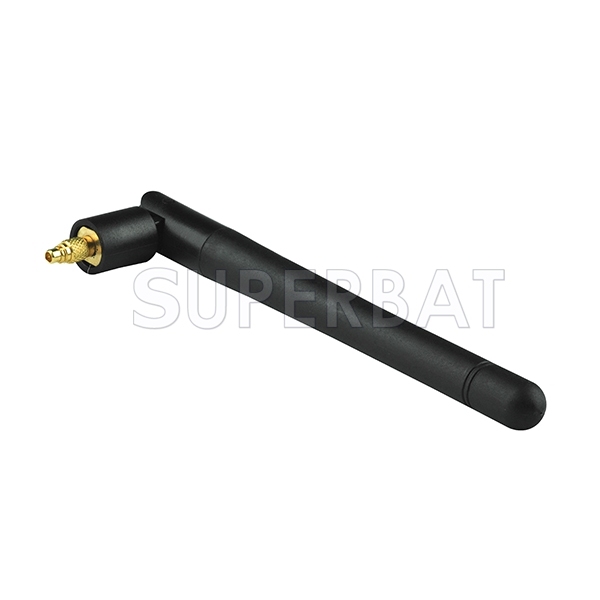

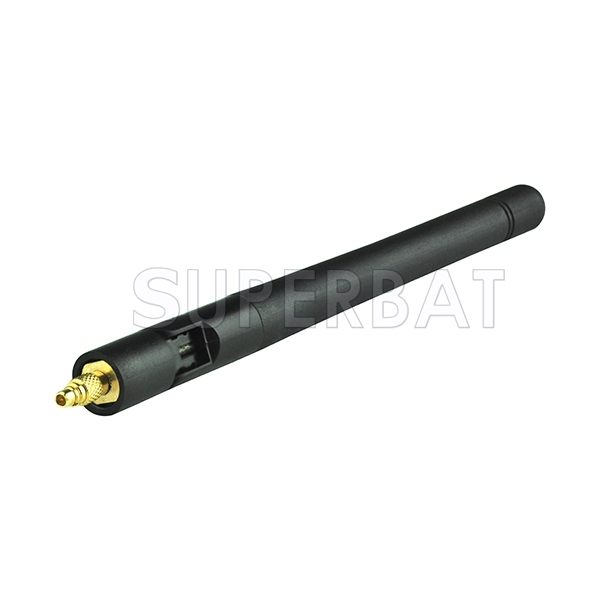

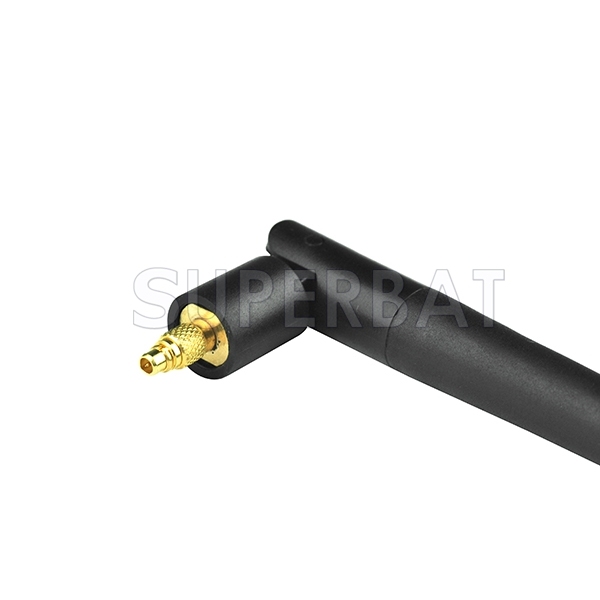

3dbi Omni-directional GSM/UMTS/HSPA Antenna 890-960MHz/1710-1880MHZ MMCX male

No.GM2-2484-M01SP-030
Antenna Type：Rubber DuckNetwork：GSM/GPRS/EDGE/CDMA AntennaFrequency：1710~1880MHz,890~960MHzConnector Series：MMCXConnector Polarity：StandardConnector Gender：PlugGain：3dBiRadiation：OmnidirectionalV.S.W.R：≤1.5Weight：9g
CONTACT US
  • 3dbi Omni-directional GSM/UMTS/HSPA Antenna 890-960MHz/1710-1880MHZ MMCX male
  • 3dbi Omni-directional GSM/UMTS/HSPA Antenna 890-960MHz/1710-1880MHZ MMCX male
  • 3dbi Omni-directional GSM/UMTS/HSPA Antenna 890-960MHz/1710-1880MHZ MMCX male
Description

Frequency range (MHz): 1710~1880MHz,890~960MHz,
Gain: 3dBi
VSWR ≤1.8
Max Input power : 50w
Input Impedance: 50Ω
Antenna Length: 104mm
Polarization: Vertical
Operating Temperature: -45℃ to +75℃
Housing: Black
Directionality: Omni-directional
Connector: MMCX plug straight
Weight: 9g
