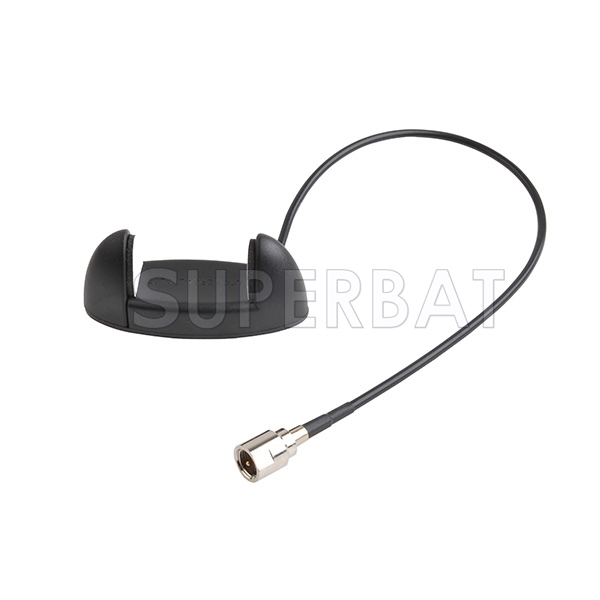

Specification:
Frequency Range(MHz) 890-960/1710-2150
VSWR :≤1.5
Gain: 0dbi
Max Input power(W): 60
Input Impedance(Ω): 50
Polarization Type: Vertical
Cable Length(cm): 15cm
Cable Type RG58 U/RG 174 as default

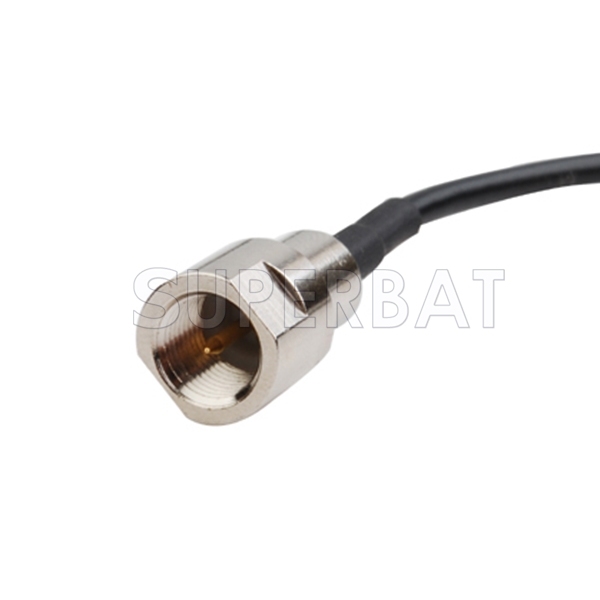

Connector Type: FME male connector as default, optional conector:SSMB/SMB/MC-card/SMA etc.pls leave a note.
Mounting: STICKING
Housing: Black
Weight:20g
Storage Temperature: -45'c to +75'c
Operating Temperature: -45'c to+75'
This Product is Compatible with:
BT: E180
BT Huawei: E170
Huawei: E1550, E160G, E166, E170, E172, E176, E180, E216, E219, E220, E230, E270, E510
O2: 875U, USB Stick
Option: 225, 510
Option : Icon
Orange: Icon, MF330, Option 225
Sierra Wireless: 875U
T-Mobile: 510, 530, E170, E220
Three: MF622, E1550, E169G, E220, MF627
Vodafone: E172, E270, USB Stick
Vodafone : USB Stick Lite
ZTE: MF330, MF622, MF627
Instructions:
Power off wireless device
Plug connector into antenna port on wireless device
Power on wireless device
For best performance place antenna as close to exterior window as possible
Installation Tips:
Antenna should be mounted vertically to maximize performance
Antenna should not be mounted against metal
