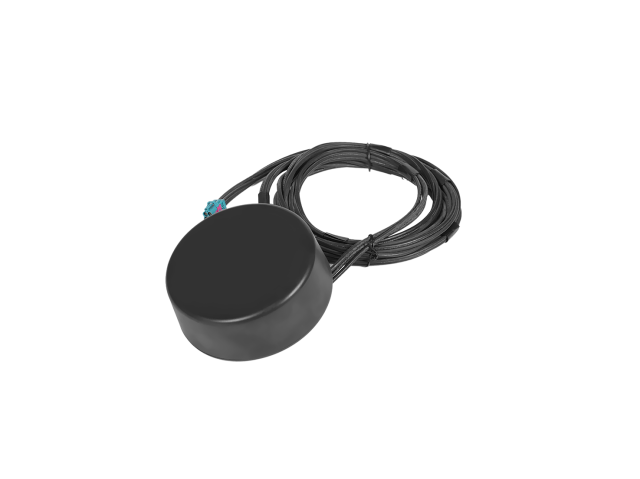

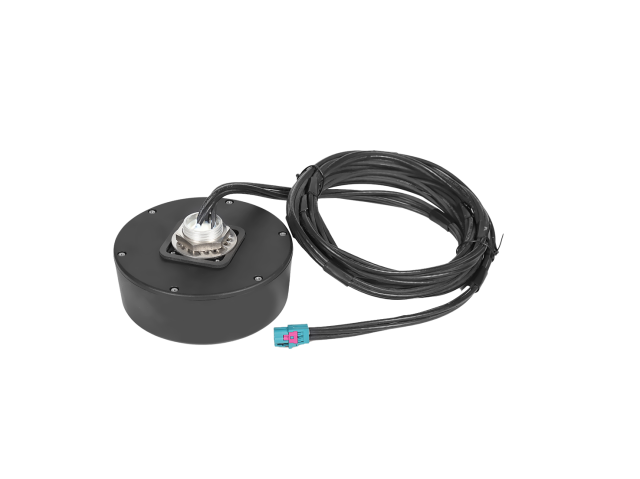

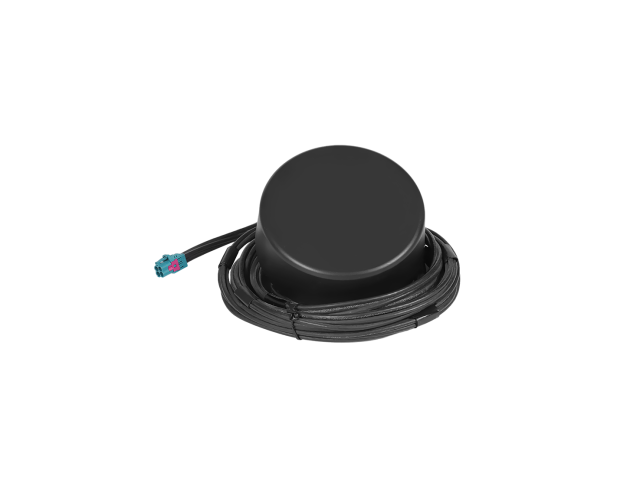

This is a roof mount antenna with IP69k protection, designed to cover 5G and 4G cellular bands between 700MHz up to 5G. This is a 4-in-1 antenna with 2 5G(Main & Aux )antenna and 2x2 5G MIMO Antennas in one compact enclosure. With the full coverage of 5G, it is ideal to have an antenna that can cover multiple different frequency bands for various uplink and downlink requirements, increasing throughput for a device..
• Easy Installation

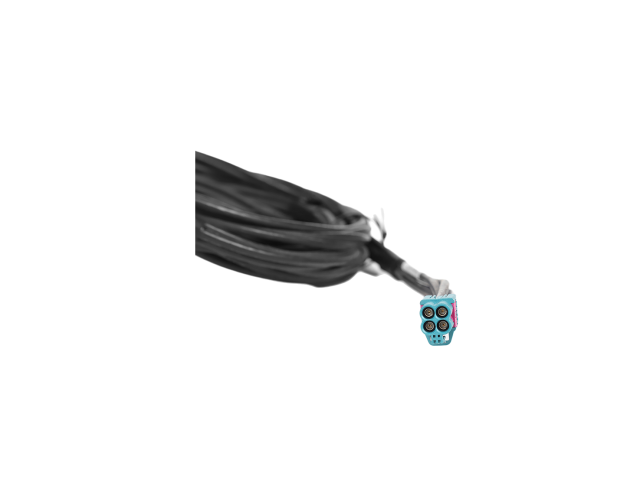

The antenna is designed to work with various GND plane sizes or in free space for ease of integration with connection via 4 customizable length cable & connector.
• IP69K Protection
It has a robust enclosure as well as IP69K waterproof rated, it is ideal for installation in harsh environment and areas not protected from rainfall, such as on the roof of a bus stop, engineering vehicle, charging piles, and etc.
• 2x2 MIMO Tech.
This combination antenna comes with 2X2 MIMO antenna, which allows the device to transmit and receive several signals in one time, give user great experience on flying Internet speed.
• High Efficiency
This antenna has efficiency up to 62%, which gurantee the signal can be transmit and receipt effectively, which is important to increase the whole performance of the communciation system.
| Function | 5G MIMO 1 | 5G MIMO 2 | 5G Main Antenna | 5G AUX Antenna |
| (1) Frequency range: | 1710-2690/3300-5000MHZ | 1710-2690/3300-5000MHZ | 700-960/1710-2690/3300-5000MHZ | 700-960/1710-2690/3300-5000MHZ |
| (2) V.S.W.R: | <3.0/<3.0 | <3.0/<3.0 | <5.0/<3.0/<3.0 | <5.0/<3.0/<3.0 |
| (3) Impedance: | 50Ω | 50Ω | 50Ω | 50Ω |
| (4) Gain: | Min/Max 1.98/3.87dBi | Min/Max 1.18/4.16 dBi | Min/Max -0.99/4.08dBi | Min/Max -0.91/4.26dBi |
| (5) Polarization: | Linear | Linear | Linear | Linear |
| (6) Efficiency | Max 58% | Max 60% | Max 62% | Max 58% |
| Mechanical Specifications | |
| (1) Size(mm) | φ120*43 |
| (2) Casing | PC+ABS |
| Environmental Requirements | |
| (1) Operating temperature | -40℃ ~ +85℃ |
| (2) Protection grade | IP69K |
