Frequency Bands: 700~960MHz, 1710~2690MHz, 3300~5000MHz
Gain: 0 Min
VSWR: ≤4
Average efficiency: 700~960MHz: 30%; 1710~2690MHz: 50%; 3300~5000MHz: 50%;
Technology: 5G/4G
Cable Length: 50cm

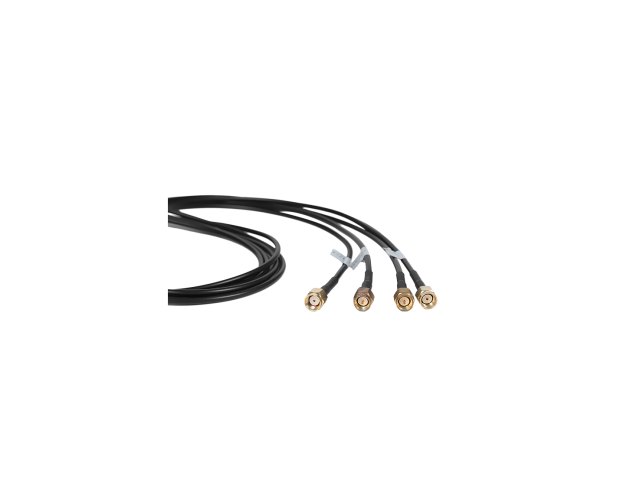

Connector Type: SMA -Male(SMA-J)
Input impedance: 50Ω
Dimensions: φ120 x 43mm
Application with 5G/LTE-A/LPWA/LTE-Standard/GSM/GPRS/Wi-Fi/Smart telecommunication modules. Can be widely used in industries, like charging pile, special engineering

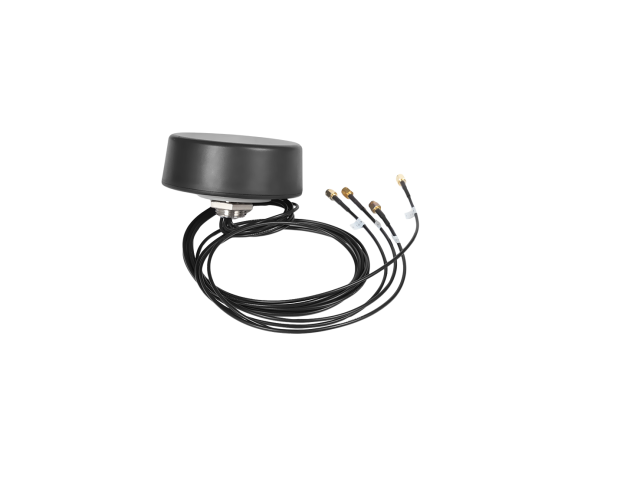

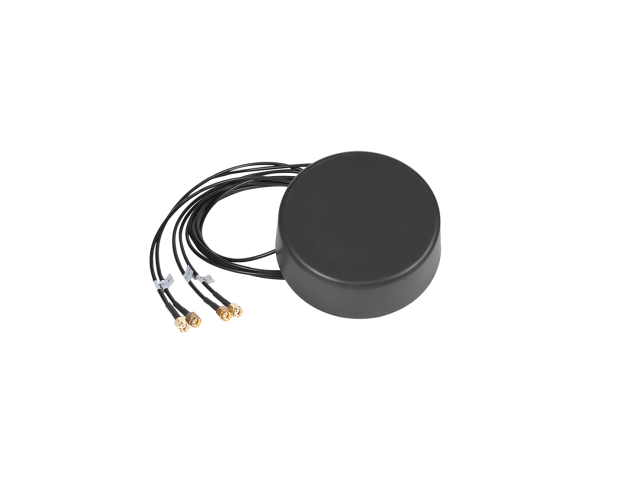

This ultra-wide-band 5G antenna box provides broad coverage from 700-5000MHz supporting 2*5G and 2x2 5G MIMO whilst backward-compatible to support 4G/3G/2G networks as well at Cat-M and NB-IoT.
• Easy Installation
The antenna is designed to work with various GND plane sizes or in free space for ease of integration with connection via 4 customizable length cable & connector.
• IP67 Protection

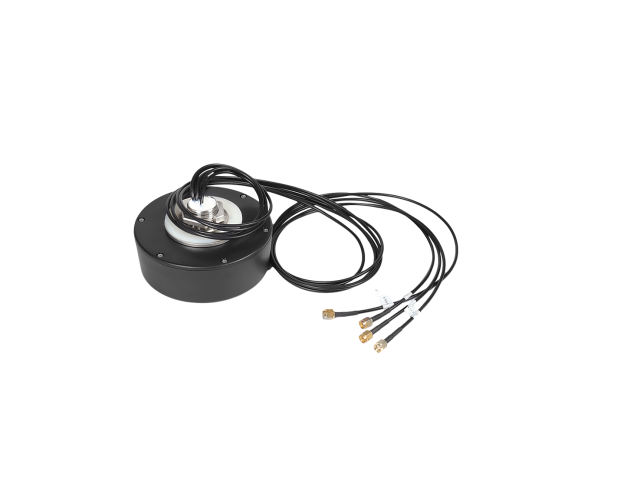

This screw mount omnidirectional antenna is easy to install with maximum durability with its IP67 enclosure.
• 2x2 MIMO Tech.
This combination antenna comes with 2X2 MIMO antenna, which allows the device to transmit and receive several signals in one time, give user great experience on flying Internet speed.
• High Efficiency
This antenna has efficiency up to 62%, which gurantee the signal can be transmit and receipt effectively, which is important to increase the whole performance of the communciation system.
| Function | 5G MIMO 1 | 5G MIMO 2 | 5G Main Antenna | 5G AUX Antenna |
| (1) Frequency range: | 1710-2690/3300-5000MHZ | 1710-2690/3300-5000MHZ | 700-960/1710-2690/3300-5000MHZ | 700-960/1710-2690/3300-5000MHZ |
| (2) V.S.W.R: | <3.0/<3.0 | <3.0/<3.0 | <5.0/<3.0/<3.0 | <5.0/<3.0/<3.0 |
| (3) Impedance: | 50Ω | 50Ω | 50Ω | 50Ω |
| (4) Gain: | Min/Max 1.98/3.87dBi | Min/Max 1.18/4.16 dBi | Min/Max -0.99/4.08dBi | Min/Max -0.91/4.26dBi |
| (5) Polarization: | Linear | Linear | Linear | Linear |
| (6) Efficiency | Max 58% | Max 60% | Max 62% | Max 58% |
| Mechanical Specifications | |
| (1) Size(mm) | φ120*43 |
| (2) Casing | PC+ABS |
| Environmental Requirements | |
| (1) Operating temperature | -20℃ ~ +80℃ |
| (2) Protection grade | IP67 |
