Specifications
Frequency Range:4000～16000 MHz
Insertion Loss ≤ 2.8 dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR:Typ.1.24/ Max.1.6
Output Port VSWR:Typ.1.16/ Max.1.5
Isolation:Typ.24dB / Min.16dB
Amplitude Balance:±0.5dB
Phase Balance:±10°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

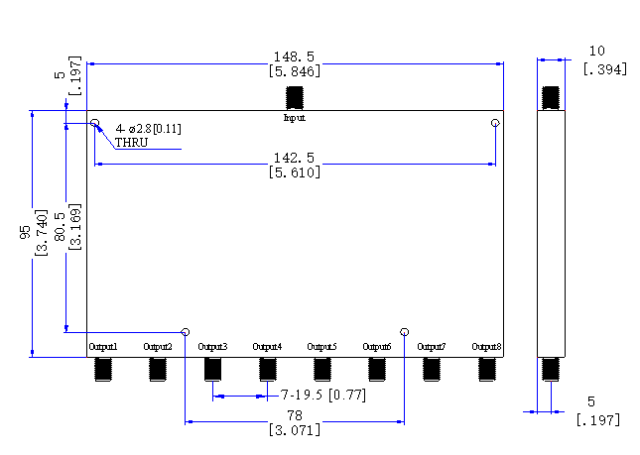

Outline Dimensions :148.5*95*10（mm）
Weight:345（g）
