Specifications
Frequency Range:4500～18000 MHz
Insertion Loss ≤ 2.2 dB（Excluding theoretical loss :12.0dB）
Input Port VSWR:Typ.1.45 / Max.1.6
Output Port VSWR:Typ.1.25 / Max.1.5
Isolation:Typ.26dB / Min.17dB
Amplitude Balance:±0.6dB
Phase Balance:±6°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

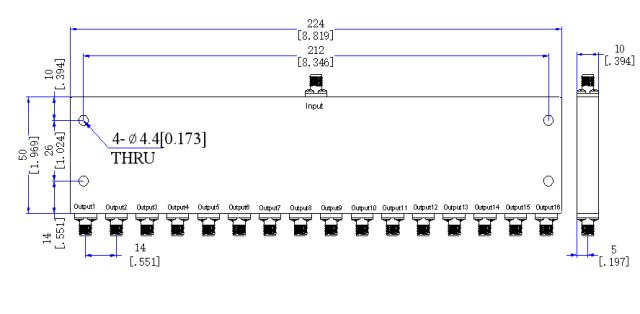

Outline Dimensions :50*224*10（mm）
Weight:390（g）
