Frequency range : 2300-2700 MHz
Polarization: Vertical
Gain (dbi): 10dbi
Horizontal beamwidh: 50
Vertical beamwidth: 50
F/B ratio (dB): ≥25
Input Impedance: 50 Ohm
VSWR: ≤1.5
Max power (W): 50
Lightning protection: DC Ground
Cable Type: RG58
Cable length: 3M

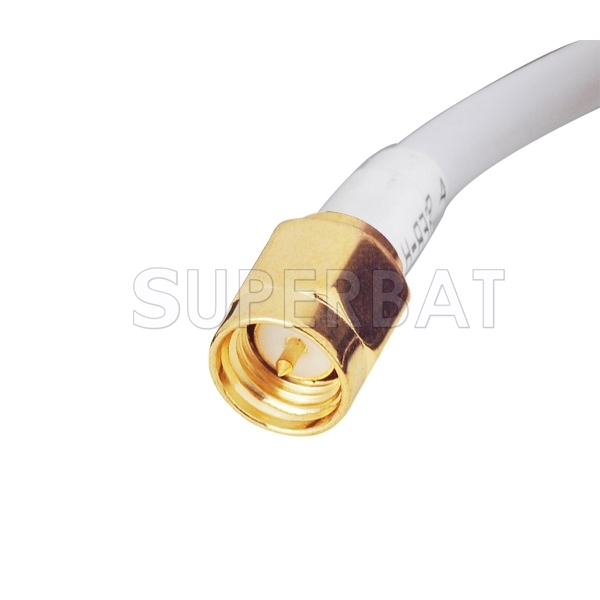

Connector type: SMA male straight as default or customized
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!
Antenna weight (kg): 0.42
Radome material: ABS
Radome color: white
Mechanical tilt: 0～10
Operating Temperature: -40～60
Rated Wind Velocit(m/s): 60

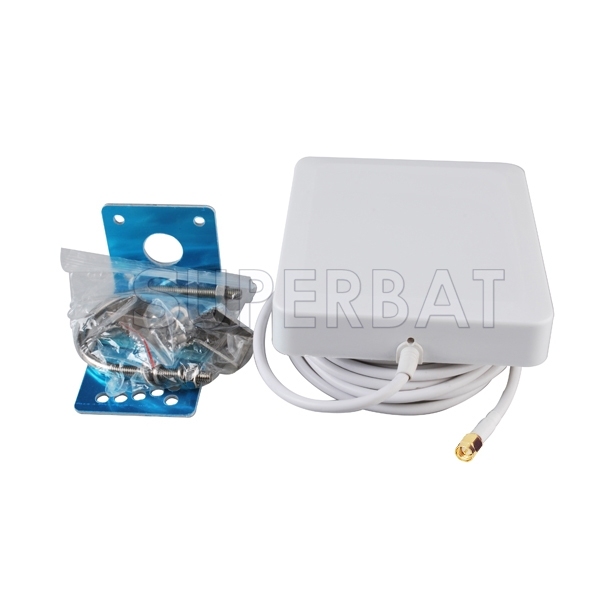

Mounting hardware(mm): 35～50
