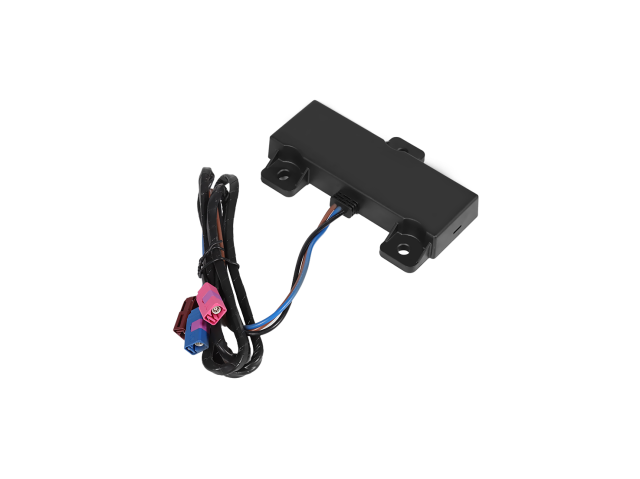

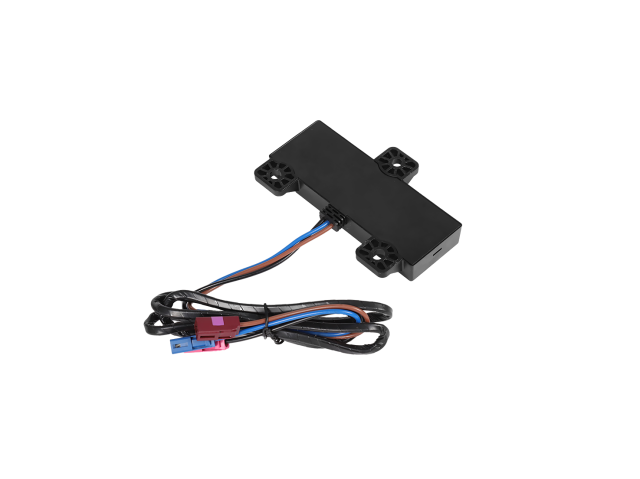

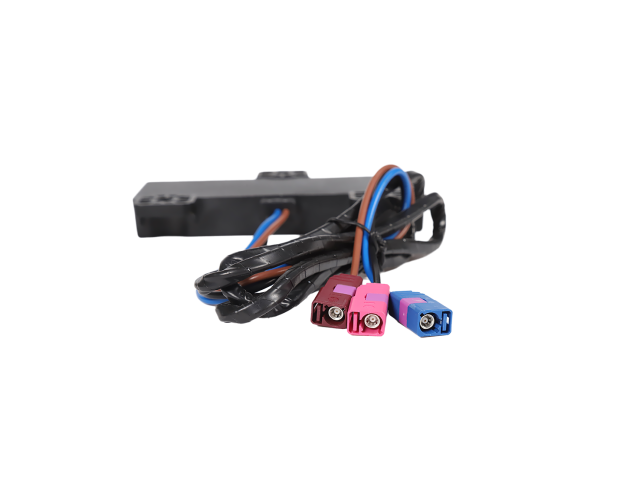

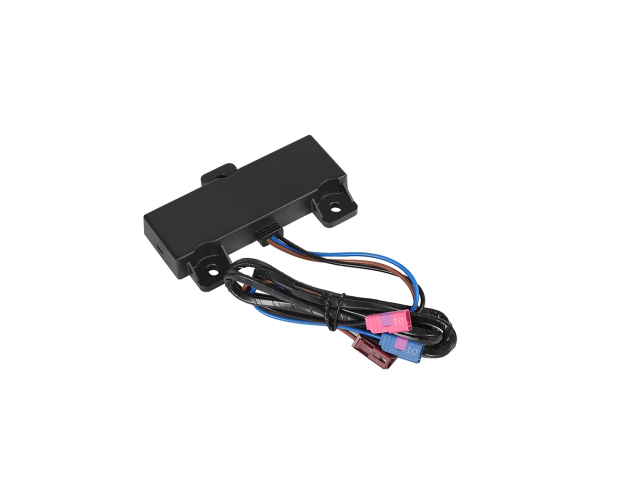

Tailored Solutions: Customizable designs to meet specific requirements.
Superior Performance: Excellent isolation and high efficiency for reliable communication.
Wide Frequency Range: Supports both 4G LTE and GNSS frequencies.
Versatile Applications: Ideal for a variety of vehicles, including cars, caravans, engineering vehicles, and agricultural equipment
The combined vehicle antenna adopts multi-feed points and a completely symmetrical structure, which reduces the error of the antenna when measuring.
The antenna has the characteristics of high gain, directional beamwidth, low elevation signal reception, etc., to ensure that the satellite signal can be received.
Usually in a severely closed environment. In the low noise amplification part, the pre-filtering scheme is adopted to effectively suppress out-of-band interference and improve system reliability.
The combined vehicle antenna covers GPS L1, BDS second-generation B1/, GLONASS L1, 4G communication, meets the on-board T-BOX host equipment, has the characteristics of multi-system compatibility and high-precision measurement, and is widely used in mapping, ocean survey, geological deformation monitoring and other fields.
• High performance amplifiers & filters
This combination antenna has built-in amplifiers and filters to enhance the received signal and reduce noise interferences.
• Anti-interference
To ensure stable operation in complex environments, this antenna is specially designed to reduce interference from other wireless devices.
• Multi-band Coverage
The antenna usually supports 4G network connection communication, while providing GNSS high-precision navigation functions.
• Good Isolation
The 4G+GNSS combination antenna has a good isolation between antennas, ensuring that the signals between the antennas do not leak and do not interfere with each other, improving the overall performance of the antenna and reducing the influence of the antenna on the measurement error during measurement.
| Function | 4G Antenna Part (Main) | 4G Antenna Part (Div) | GNSS |
| Frequency Range | 824~960/1710~2170/2300~2690MHz | 824~960/1710~2170/2300~2690MHz | GPS L1、BDS B1 |
| V.S.W.R | ＜2.5/＜2.5/<2 | ＜2.5/＜2.5/<2 | ≤2.0:1 |
| lmpedance | 50±3Ω | 50±3Ω | 50Ω |
| Polarization | Linear | Linear | RHCP |
| gain | ≥2dBi | ≥2dBi | ≥0dBi |
| Isolation | ≥10dB | ≥10dB | ≥10dB |
| Low noise amplifier characteristics | |
| Working voltage | 3V∽5V |
| Working current | 9mA±3mA@3.3V |
| Output gain | 28±3dB |
| Output impedance | 50±3Ω |
| Output standing wave ratio | ≤2.0:1 |
| Noise factor | ≤2dB |
| Environmental Requirements | |
| (1) Operating temperature | -40℃ ~ +85℃ |
| (2) Storage temperature | -40℃ ~ +90℃ |
| (3) Protection grade | IP52 (after vehicle assembly) |
