Home > All Collections > 4G LTE Magnetic Antenna 2500-2700MHZ 9dBi SMA For Multi-range modems, Huawei and ZTE
  • 4G LTE Magnetic Antenna 2500-2700MHZ 9dBi SMA For Multi-range modems, Huawei and ZTE
  • 4G LTE Magnetic Antenna 2500-2700MHZ 9dBi SMA For Multi-range modems, Huawei and ZTE
  • 4G LTE Magnetic Antenna 2500-2700MHZ 9dBi SMA For Multi-range modems, Huawei and ZTE
  • 4G LTE Magnetic Antenna 2500-2700MHZ 9dBi SMA For Multi-range modems, Huawei and ZTE
  • 4G LTE Magnetic Antenna 2500-2700MHZ 9dBi SMA For Multi-range modems, Huawei and ZTE
  • 4G LTE Magnetic Antenna 2500-2700MHZ 9dBi SMA For Multi-range modems, Huawei and ZTE

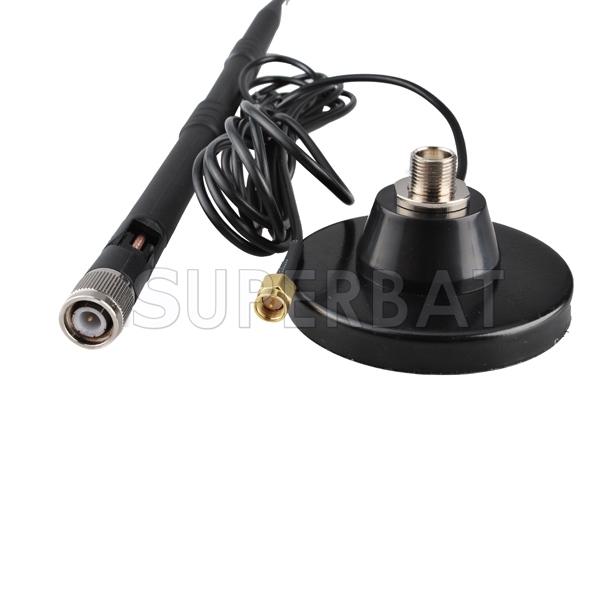

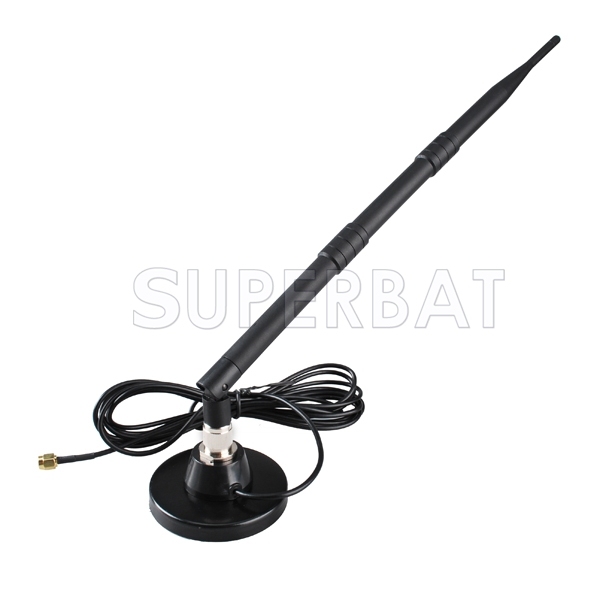

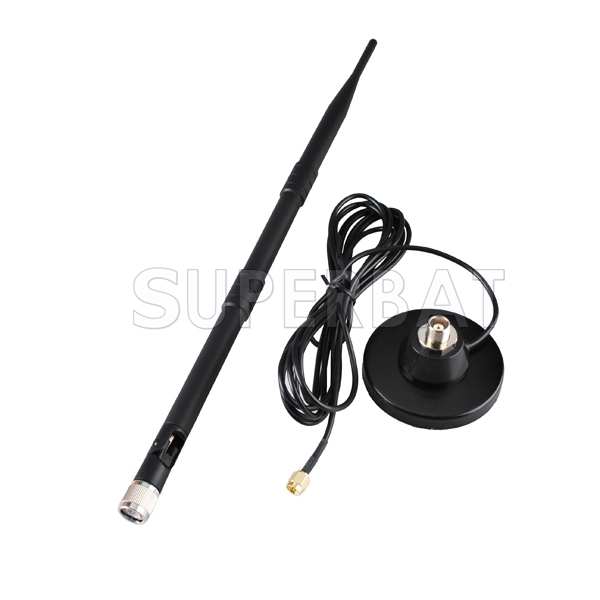

4G LTE Magnetic Antenna 2500-2700MHZ 9dBi SMA For Multi-range modems, Huawei and ZTE

No.LA1-2588-S01SP-090-300
Antenna Type：Magnetic MountNetwork：4G/LTE AntennaFrequency：2500-2700 MHzConnector Series：SMAConnector Polarity：StandardConnector Gender：PlugGain：9 dbiRadiation：OmnidirectionalV.S.W.R：≤1.5Cable Type：RG174Cable Length：3mWeight：244g
CONTACT US
  • 4G LTE Magnetic Antenna 2500-2700MHZ 9dBi SMA For Multi-range modems, Huawei and ZTE
  • 4G LTE Magnetic Antenna 2500-2700MHZ 9dBi SMA For Multi-range modems, Huawei and ZTE
  • 4G LTE Magnetic Antenna 2500-2700MHZ 9dBi SMA For Multi-range modems, Huawei and ZTE
Description

9dbi gains
Frequency range : 2500-2700 MHz
VSWR< 1.5 : 1 max
Impedance :50 Ohm
Polarization Linear Vertical
Omnidirectional Antenna
Polarization Vertical
Diameter: 13.5mm
Antenna connector: TNC male
Base connector: TNC female
With 3 meter cable
Cable Connector: SMA or customized
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Colour: black
Mounting:Magnetic Base
Cable: RG174
Weight:244g
Working Temperature : -20~+55 deg C
