Specifications:
Usable with scopes having Bandwidth up to 100 MHz

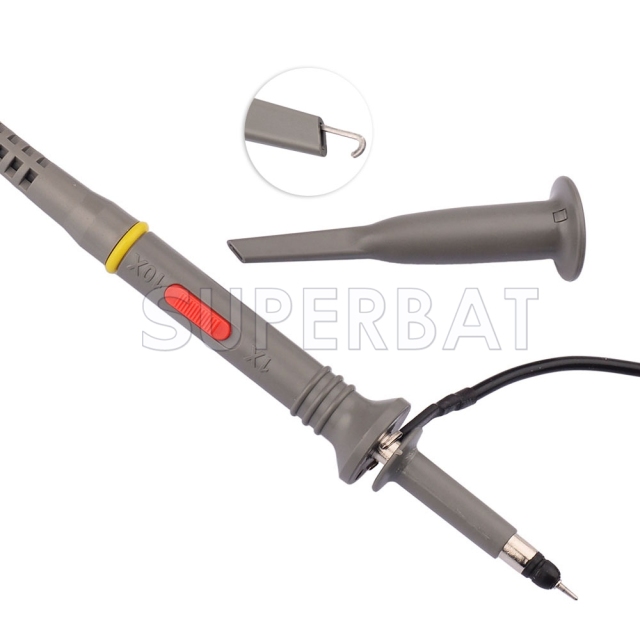

Interchangeable Probe Tip
Coaxial Reed Switch
Modular Construction
Compensation range: 10 to 35 pF
Input Capacitance: 1X: 85pF-135pF; 10X: 16pF-20pF
Input Resistance: 1X: 1Mohm; 10X: 10Mohm;
Bandwidth: 1X: DC-6MHZ, 10X: 100MHz
Attenuation Ration: 1:10
Net Weight: 55g
Cable Length: 120cm
Operating Temp: -10C-+50C
Operating Humidity: <=85%
Maximum Input Voltage: 1X: 300 VDC+Peak AC, 10X: 600 VDC+Peak AC

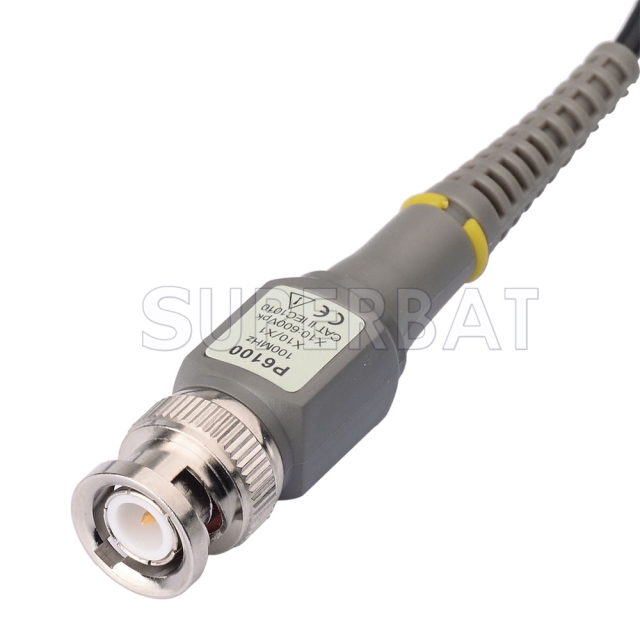

P6100 Series Probes
General Purpose, Bench or Field
Economical, Yet High Quality
High Input Impedance (X10 range)
Compensation (X10 range)

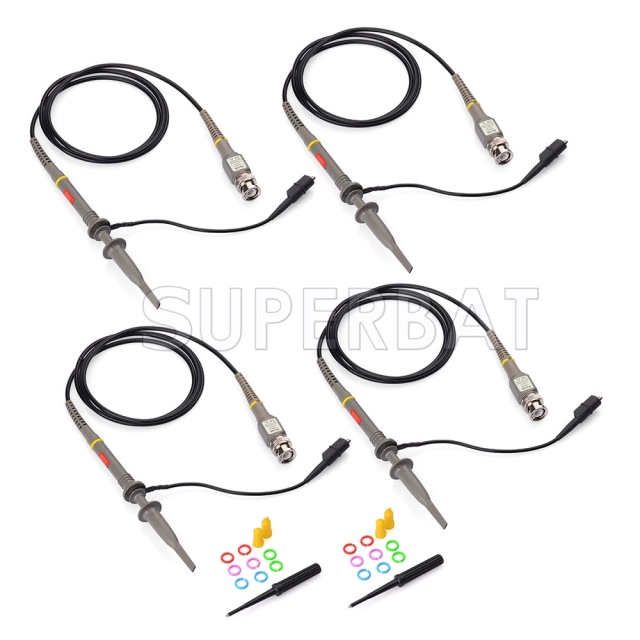

package includes:

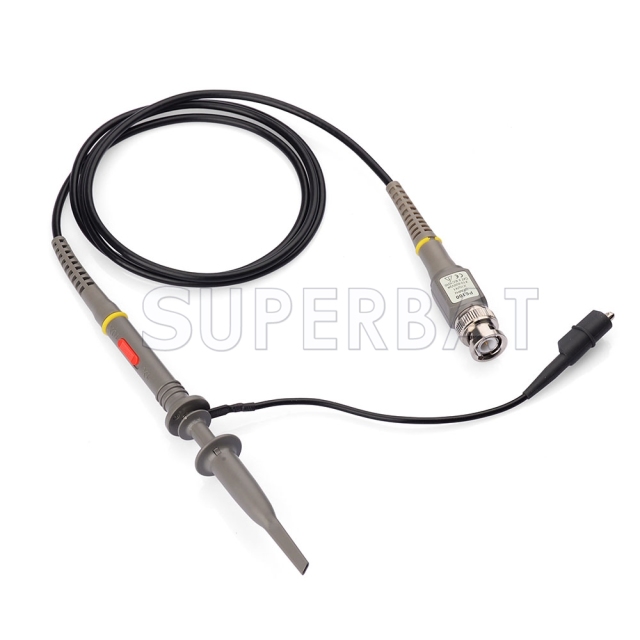

1) 4 100MHZ Oscilloscope probes with Mini Alligator Clip and ground lead;

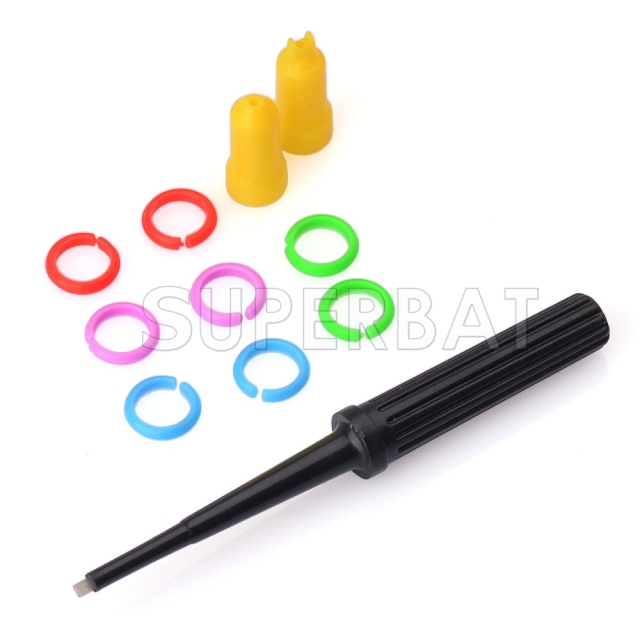

2) 2 Screwdrivers;
3) 12 marker bands;
4) 4 tip locating sleeves.
5) 2 Manuals
