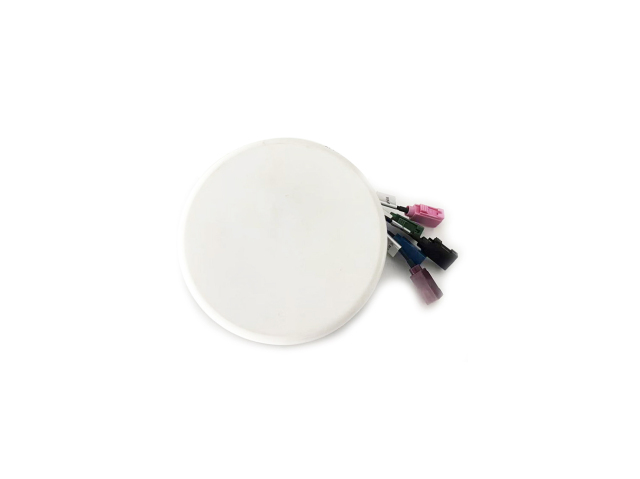

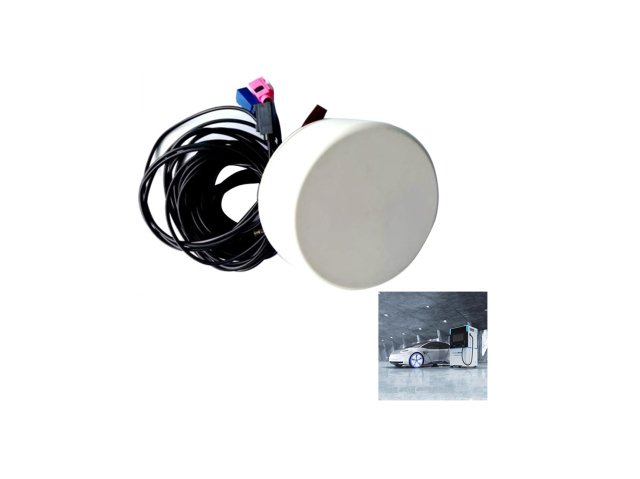

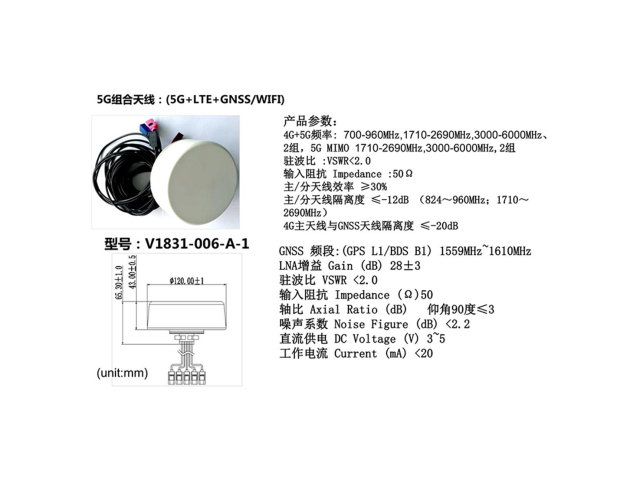

EV Car Charging pile 5-in-1 Antenna (4G/LTE/Wifi/BLE/GNSS)
1.GNSS Antenna (GPS L1 /BDS B1)
Frequency(Mhz):1559∽1609 MHz
LNA Gain: 10±3dB - 2.5m cable
2. LTE Main & Diversity Antenna
Frequency(Mhz): 700-960/ 1710-2690, Gain >-2.5dB
3.Wifi Antenna
Frequency(Mhz): 2400-2500/5150-5850MHz, Gain >-2.5dB
4. BT Antenna
Frequency(Mhz): 2400-2500, Gain >-2.5dB
Size: 120φ*43mm
Application: Charging piles, engineering vehicles, agricultural vehicles, special vehicles, intelligent cabinets, etc
This multi-antenna combines 5 different powerful antennas in one elegant round shape casing. Two (Main & Div) 3G / 4G antenna for data connection, covering the frequency bands 700-960MHz and 1710-2690MHz. Another two antenna are one Dual band (2.4/5.8GHZ) Wi-Fi antenna and one 2.4G Bluetooth 5. The fifth is an active GPS / GLONASS antenna.
• Easy installation & Maintenance
The antenna is designed to work with various GND plane sizes or in free space for ease of integration with connection via 4 customizable length cable & connector.
• IP67 protection
This screw mount omnidirectional antenna is easy to install with maximum durability with its IP67 enclosure.
• High integration
This antenna supports multiple functions of cellular, Wi-Fi, Bluetooth and GNSS. Through a single antenna to achieve multiple communication requirements, simplifying device design, reducing installation space and cost, and improving overall performance and stability of the device.
• Wide applicability
This multifunctional combination antenna is suitable for a variety of scenarios, such as transportation, industry, etc., and can adapt to different wireless technology needs to provide the required connection for customer equipment.
| 4G Main Antenna | 4G Div Antenna | 5G Main Antenna | 5G AUX Antenna | |
| (1) Frequency range: | 1710-2690/3300-5000MHZ | 1710-2690/3300-5000MHZ | 700-960/1710-2690/3300-5000MHZ | 700-960/1710-2690/3300-5000MHZ |
| (2) V.S.W.R: | <3.0/<3.0 | <3.0/<3.0 | <5.0/<3.0/<3.0 | <5.0/<3.0/<3.0 |
| (3) Impedance: | 50Ω | 50Ω | 50Ω | 50Ω |
| (4) Gain: | Min/Max 1.98/3.87dBi | Min/Max 1.18/4.16 dBi | Min/Max -0.99/4.08dBi | Min/Max -0.91/4.26dBi |
| (5) Polarization: | Linear | Linear | Linear | Linear |
| (6) Efficiency | Max 58% | Max 60% | Max 62% | Max 58% |
| Mechanical Specifications | |
| (1) Size(mm) | φ120*43 |
| (2) Casing | PC+ABS |
| Environmental Requirements | |
| (1) Operating temperature | -40℃ ~ +85℃ |
| (2) Protection grade | IP67 |
