500~26500MHz SMA Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.5/26.5-2S
CONTACT US
  • 500~26500MHz SMA Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:500～26500 MHz

Insertion Loss ≤ 2.4 dB（Excluding theoretical loss:3.0 dB）

Input Port:VSWR Typ.1.28 / Max.1.55

Output Port:VSWR Typ.1.28 / Max.1.50

Isolation:Typ.26dB / Min.16dB

Amplitude Balance:±0.4dB

Phase Balance:±4°

Impedance:50 Ohms

Input/Output Connectors :SMA-Female

Power Rating:Splitter:20W; Combiner:1W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Black paint

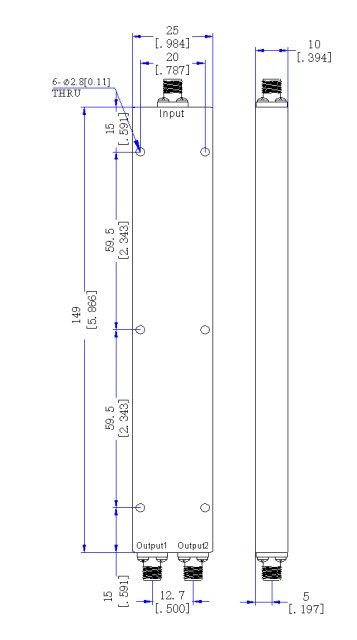

Outline Dimensions:149*25*10（mm）
