Specifications
Frequency Range:500～26500 MHz
Insertion Loss ≤ 1.9dB（Excluding theoretical loss:3.0 dB）
Input Port VSWR:Typ.1.28 / Max.1.7
Output Port VSWR:Typ.1.18 / Max.1.6
Isolation≥10dB（500-600M）＆15dB（600-26500M）
Amplitude Balance:±0.8dB
Phase Balance:±10°
Impedance:50 Ohms
Input/Output Connectors :SMA-Female
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

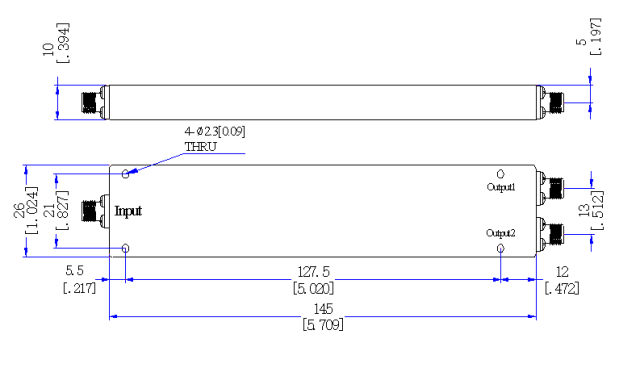

Outline Dimensions:145*26*10（mm）
Weight:120（g）
