Specifications
Frequency Range:500～26500 MHz
Insertion Loss≤ 6.5 dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR:Typ.1.40 / Max.1.70
Output Port VSWR:Typ.1.25 / Max.1.60
Isolation:Typ.22dB / Min.16dB
Amplitude Balance:±0.6dB
Phase Balance:±8°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

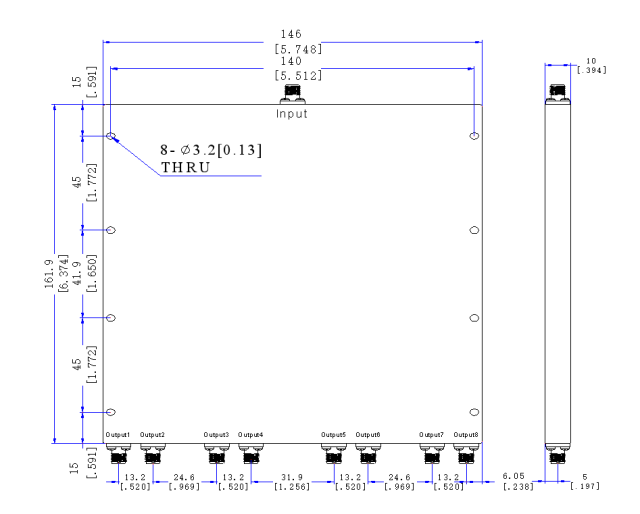

Outline Dimensions:161.9*146*10（mm）
Weight:700（g）
