Specifications
Frequency Range:500～28000 MHz
Insertion Loss ≤ 2.8 dB（Excluding theoretical loss:3.0 dB）
Input Port VSWR:Typ.1.28 / Max.1.50
Output Port VSWR :Typ.1.28 / Max.1.50
Isolation:Typ.26dB / Min.16dB
Amplitude Balance:±0.4dB
Phase Balance:±4°
Impedance:50 Ohms
Input/Output Connectors:2.92-Female
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

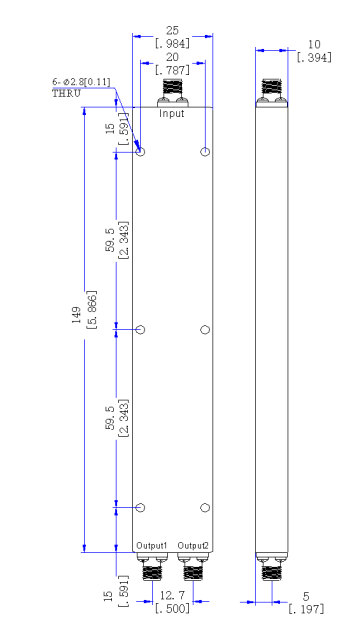

Outline Dimensions:149*25*10（mm）
