Specifications
Frequency Range:5～1000 MHz
Insertion Loss ≤ 3.6 dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR:Max.1.50
Output Port VSWR :Max.1.40
Isolation :Min.18dB
Amplitude Balance :± 0.5dB
Phase Balance ±5°
Impedance:50 Ohms
Input/Output Connectors:N-Female
Power Rating Splitter:1W; Combiner:0.5W
Operation Temperature :-35℃ ~ +75℃
Surface Finishing

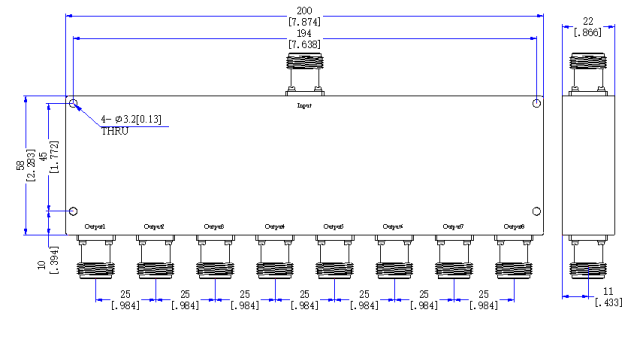

Outline Dimensions:58*200*22（mm）
Weight:660（g）
