5~1000MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-5/1000-8S
CONTACT US
  • 5~1000MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:5～1000 MHz

Insertion Loss ≤ 3.0 dB（Excluding theoretical loss:9.0 dB）

Input Port  VSWR ≤ 1. 35: 1

Output Port VSWR ≤ 1. 35: 1

Isolation:Typ.26dB / Min.18dB

Amplitude Balance :± 0.5dB

Phase Balance :±5°

Impedance:50 Ohms

Input/Output Connectors :SMA-Female

Power Rating Splitter:1W; Combiner:0.25W，0.07W

Operation Temperature: -35℃ ~ +75℃

Surface Finishing

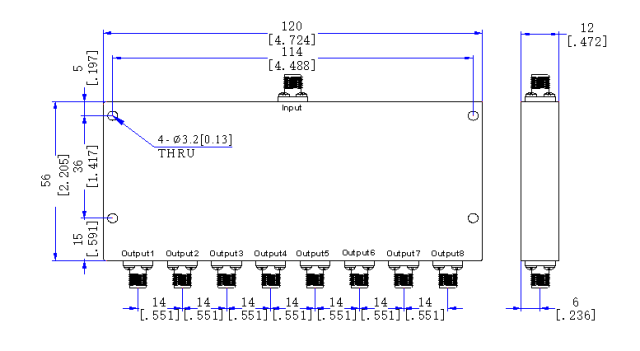

Outline Dimensions:56*120*12（mm）

Weight:220（g）
