Specifications
Frequency Range:5～1100 MHz
Insertion Loss ≤ 3.0dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR ≤ 1. 30: 1
Output Port VSWR ≤ 1. 30: 1
Isolation:Typ.26dB / Min.18dB
Amplitude Balance :± 0.5dB
Phase Balance :±5°
Impedance:50 Ohms
Input/Output Connectors :SMA-Female
Power Rating Splitter:1W; Combiner:0.5W
Operation Temperature: -35℃ ~ +75℃
Surface Finishing

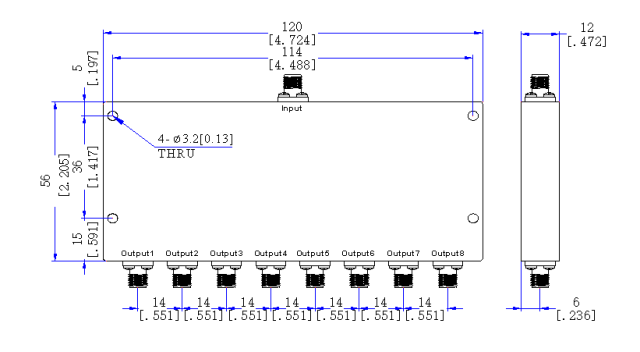

Outline Dimensions:56*120*12（mm）
Weight:（g）
