Specifications
Frequency Range:5～175 MHz
Insertion Loss ≤ 1.5dB（Excluding theoretical loss:7.8dB）
Input Port VSWR:Typ.1.22 / Max.1.5
Output Port VSWR:Typ.1.13 / Max.1.3
Isolation:Typ.26dB / Min.20dB
Amplitude Balance :±0.4dB
Phase Balance :±5°
Impedance:50 Ohms
Input/Output Connectors:BNC-Female
Power Rating Splitter:1W; Combiner:0.15W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Blue paint

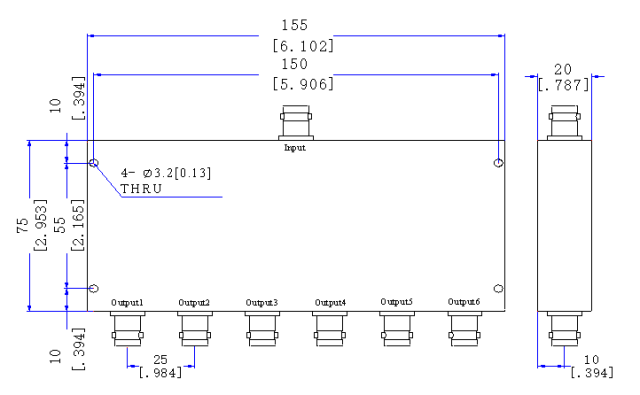

Outline Dimensions:75*155*20（mm）
Weight:（g）
